Automatic Steel Frame 1.0 - 2.0 Mm M Purlin Profile Roll Forming Making Machine
M Roll Forming Machine |
|||
No |
Item |
Specification |
Optional |
1 |
Suitable material |
Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
Thickness(mm):1.0-2.0 |
|||
Yield strength: 250 - 550MPa |
|||
Tensil stress( Mpa):G350Mpa-G550Mpa |
|||
2 |
Speed(m/min) |
10-15 |
Or according to your requirement |
3 |
Forming station |
19 |
|
4 |
Decoiler |
Manual decoiler |
Hydraulic decoiler or double head decoiler |
5 |
Main machine motor |
China famous Brand |
Siemens |
6 |
PLC brand |
Panasonic |
Siemens |
7 |
Inverter brand |
Yaskawa |
|
8 |
Driving system |
Chain drive |
Gearbox drive |
9 |
Rollers’ materail |
GCr15 |
Cr12 |
10 |
Station structure |
Wall panel station |
Forged Iron station |
11 |
Punching system |
Yes |
Hydraulic punching station or Punching press |
12 |

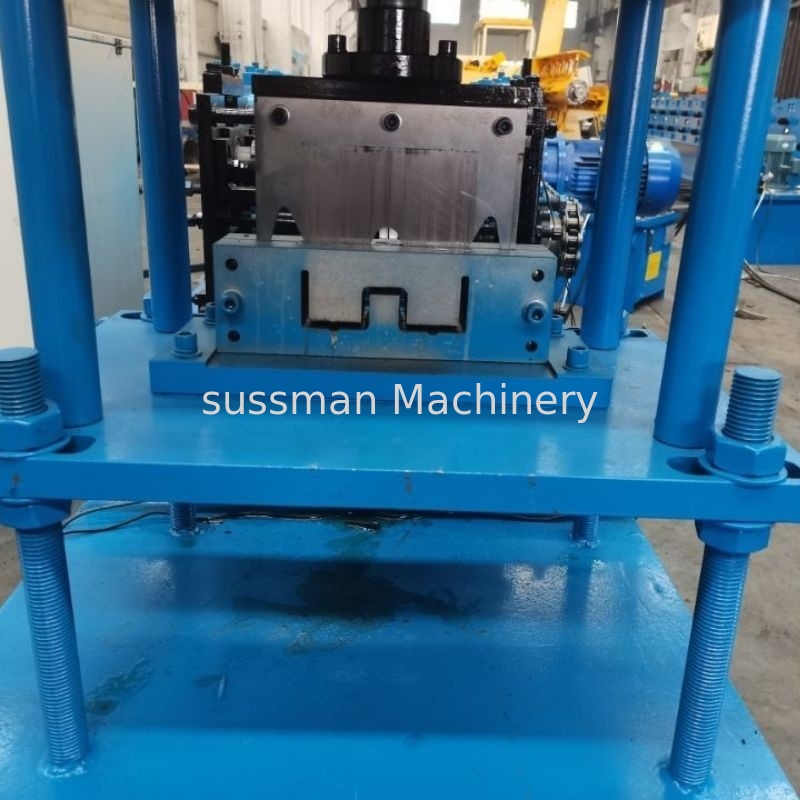

Cutting system |
Hydraulic stop Cutting |
Saw Cutting |
13 |
Power supply requirement |
380V 50Hz |
Or according to your requirement |
14 |
Machine color |
Industrial blue |
Or according to your requirement |
2. M Purlin Technical Parameter
Equipment name |
Quantity |
3T manual uncoiler |
1 set |
Roll forming machine |
1 set |
Hydraulic cutting |
1 set |
4 meters out tables |
1 set |
Control box |
1 unit |
Spare parts | 1 package |
3.Each part of C Purlin Machine
1. 3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm
2. Leveling device
Put the raw material(steel plate) through the beach to manufacture and process
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi
3. Control Box
(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.
