Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

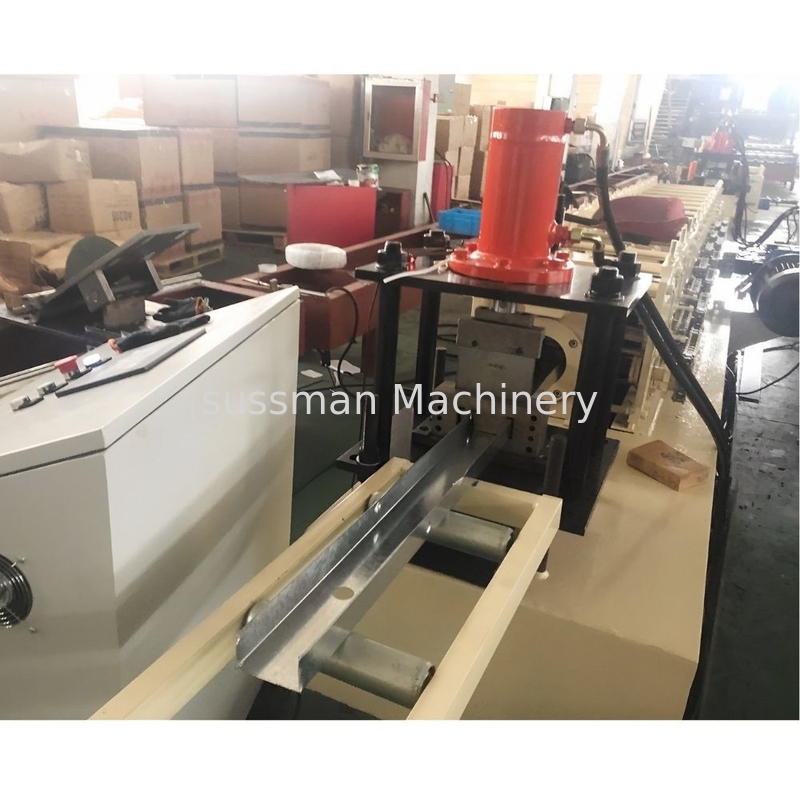

75mm 100mm Width Adjustable Light Steel Framing Machine for Malaysia
This machine is for a customer from Malaysia, thickness from 0.4mm-1.2mm, width 75mm, 100mm adjustable, it includes 5 sets of punching moulds.
Technical Data:
| Items | Specifications | |
| Material of coil | Material Thickness | 0.4-1.2mm galvanized coils |
| De-coiler | Weight | 3 ton hydraulic de-coiler |
| Punching | Number | 5 sets of punching moulds one for the round holes, another for the dimple screws |
| Forming system | Rolling Speed | 5-6 m/min |
| Roller Stations | About 13 stations forming | |
| Roller Material | Gcr15 Steel with quenching | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Maim Motor Power | 5.5 kw | |
| Hydraulic cutting Power | 7.5 kw | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Cutting blade | 1 set of cutting blade | |
| Electrical control system | Electric Source | 415V, 50HZ,3 phase |
| Control System | PLC with touch screen Japanese Delta and Delta Brand | |
| Weight | About 3 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 5500mm* Width 800mm* Height 1000m |
Machine List:
|
3 ton electrical de-coiler |
1 set |
|
Servo feeding device |
1 set |
|
Hydraulic punching device |
5 sets |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Cutting device |
1 unit |
|
Out table |
2 units |
Profile Drawing:
Sample Pictures:
Application:
