Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
0.032" Aluminum Concealed-Fastened 10" - 20" Widths Available Flush Soffit Panel Roll Forming Machine
1. Technical Parameter
|
Number |
Items |
UnitType |
RF-ST |
|
1 |
Steel Thickness |
mm |
0.7-1.2mm for Color coated steel |
|
2 |
Forming Speed |
m/min |
8-12 |
|
3 |
Roller stands |
stations |
20 stations |
|
4 |
Roller Material |
mm |
45# steel, coated with chrome |
|
5 |
Shaft material and diameter |
mm |
Ф70mm, 45# steel, fire treated |
|
6 |
Main Motor Power |
Kw |
7.5 servo motor |
|
7 |
Hydraulic cutting Power |
Kw |
4KW |
|
8 |
Hydraulic pressure |
Mpa |
12 |
|
9 |
Power Supply |
|
380V, 50HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12Mov HRC60-62 |
| 12 | Machine weight | T | about 7 tons |
2. Machine List
● Manual decoiler or Hydraulic decoiler
● Hydraulic Front Scissor Shear
● 10 HP motor power
● Adjustable Width Panels 10″ – 24″
● 40 Ft Per Minute Speed
● Material Capacity – 24ga. steel .032 aluminum
|
5 tons manual de-coiler |
1 set |
|
Hydraulic pre-cutting |
1 set |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
4 meters Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Profile Drawing
Panel Coverage: 12"
Rib Height: 1"
Rib Features: Flush Panel
Standard Gauges: 24 ga., 26 ga.
Available Materials: Aluminum, Steel
Available Substrate: Open Framing
Fasteners: Concealed
4. Application
Soffit panels are ideal for wall, soffit, fascia, or liner applications and are available in both Flat Pan and with V-Grooves to meet your aesthetic and functional needs. They feature concealed direct-fasteners for a streamlined aesthetic and does not require clips.
5. Packaging & Shipping
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.

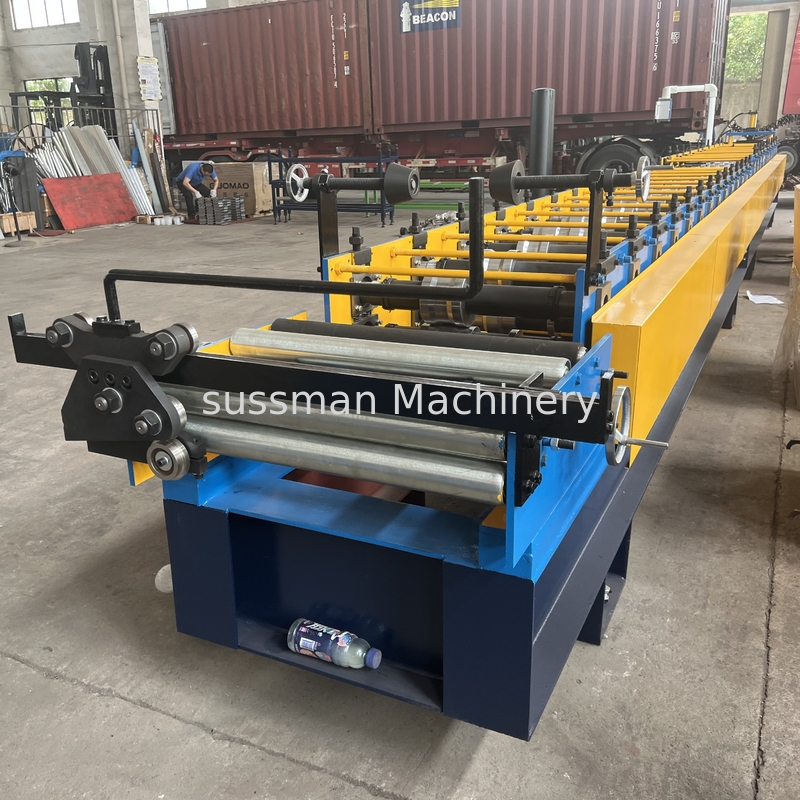

6. Machine photo
