Stud And Track Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-SM |
24 Gauge J Channel Tile Edge Trim Roll Forming Machine, J Trim Roll Forming Machine
1. Technical Parameter
Part details | Item Name | Specification |
Material | Raw material | galvanized steel or aluminum |
Thickness | 0.3-0.8 mm | |
Machine | Roller station | 16-18 rollers |
Shaft diameter | 60 mm | |
Shaft material | 45# steel with 0.05mm chrome | |
Roller material hardness | 50-55HRC | |
Machine size | About 7.5×0.6×1.0 m | |
Machine weight | About 6 tons | |
Working speed | 8-12 m/min | |
Cutter | Hardness | 55- 62HRC |
Cutting tolerance | ± 1 mm | |
Material | Cr 12 | |
Operate | Hydraulic cutting | |
Power | Driving way | Chain |
Main power | 5.5 kw servo | |
Pump power | 4 kw | |
Voltage | 380v/50HZ,3PHASE | |
Control system | PLC brand | Delta made in Twaiwan |
Screen | Touchable screen | |
Language | Chinese and English or add language as customer need | |
Decoiler | Weight capicatity | 3 tons |
Receiving table | Operation | Manual |
Length | 4 m |
2. Working Flow
Feeding with guide——Pre-punching——Roll forming——Cutting—Products collecting
3. Machine Components
3 tons passive decoiler | 1 set |
| Feeding with guide | 1 set |
Hydraulic pre-punching device | 1 set |
Main roll forming machine | 1 set |
Hydraulic cutting | 1 set |
PLC control box | 1 unit |
Hydraulic station | 1 unit |
Passive out table | 1 unit |
4. Porifle design

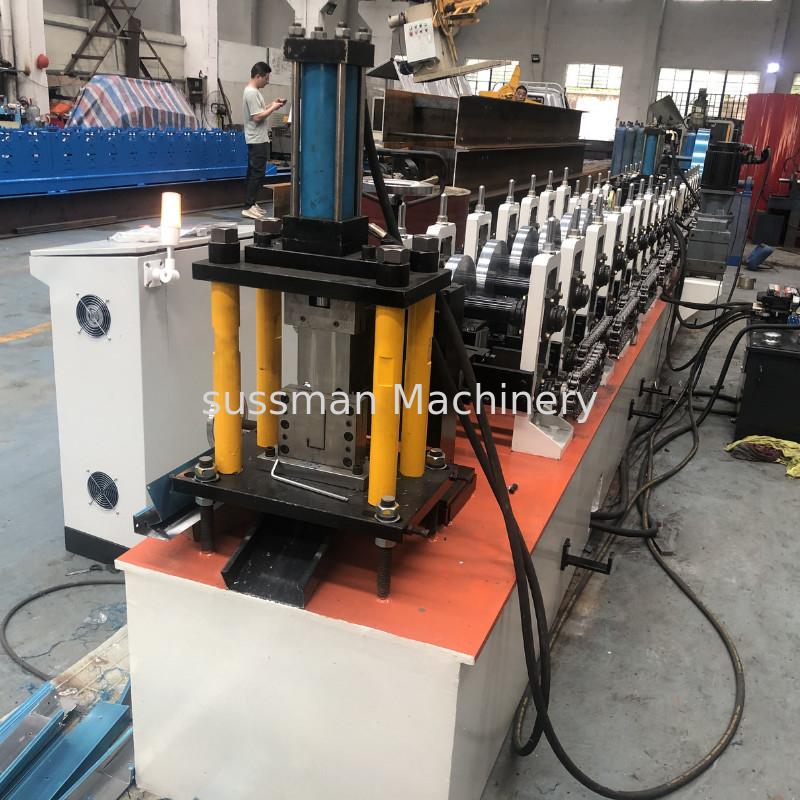

4. Machine Photo
