0.45mm Color Painted Steel Metal Fence Boards Panel Roll Forming Equipment For House Fencing
Description
This Metal fence boards are modern and versatile, and the machine is made according to customer's requirements.
Material strips undergoes the process of uncoiling, feeding, roll forming, hydrualic punching&cutting and collecting.
Controlled by PLC control system, operating of the whole machine becomes easy.
Workers only need to be trained how to collectly input related data through the touch screen. All the electic parts of this machine are from famous brands to ensure the perfect performance.
Technical parameter
|
NO
|
Item
|
Description
|
|
1
|
Product' sizes
|
According to customer's request
|
|
2
|
GProcessing material
|
GI
|
|
3
|
1Processing thickness
|
0.45-0.8mm
|
|
4
|
Main motor power
|
7.5kw
|
|
5
|
Power of hydraulic station
|
4kw
|
|
6
|
Quantity of roller stations
|
16 stations
|
|
7
|
Production speed
|
Approximate 0-15m/min
|
|
8
|
Diameter of shafts
|
Φ70mm
|
|
9
|
Material of rollers
|
GCr15 steel with heat treatment HRC58°-62°
|
|
10
|
Material of shafts
|
45# steel quenched and tempered
|
|
11
|
Material of cutting blades
|
Cr12 mould steel with quenched treatment
|
|
12
|
Driven method
|
chain drive
|
|
13
|
Brand of PLC
|
Yaskawa
|
|
14
|
Power supply
|
380V 50HZ 3Phases or at buyer's requirement
|
Main Components
| Machine name | Quantity |
| 3T automatic uncoiler | 1 set |
| Main roll forming system | 1 set |
| Hydrualic punching device | 1 set |
| Saw cutting system | 1 set |
| 4 meters out tables | 1 ste |
| PLC control box system | 1 set |
| Tool box | 1 package |
| Safety cover |
Fence panel profile design
More details
(1) Manual de-coiler
Un-power: manual de-coiler; Max. Capacity: 3T
Suit for coil inner diameter: 460-520mm, suitable coil Max. out diameter: 800mm
Manual power expands the coil inner surface.
(2) Hydraulic Cutting
1) stop cutting;
2) The cutting blade material is Cr12 with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by hydraulic station.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.
(3) PLC Control System
1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Delta converter adjusts speed technology, realize the automatic production.
3) Text screen is input and cancelled the working data.
4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)
Metal railings are a perfect replacement for wooden rails because they are extremely durable and robust.
They do not require annual maintenance, they are manufactured from high-quality, galvanized steel, coated with polyester on both sides.
This ensures resistance to wind and other mechanical factors.

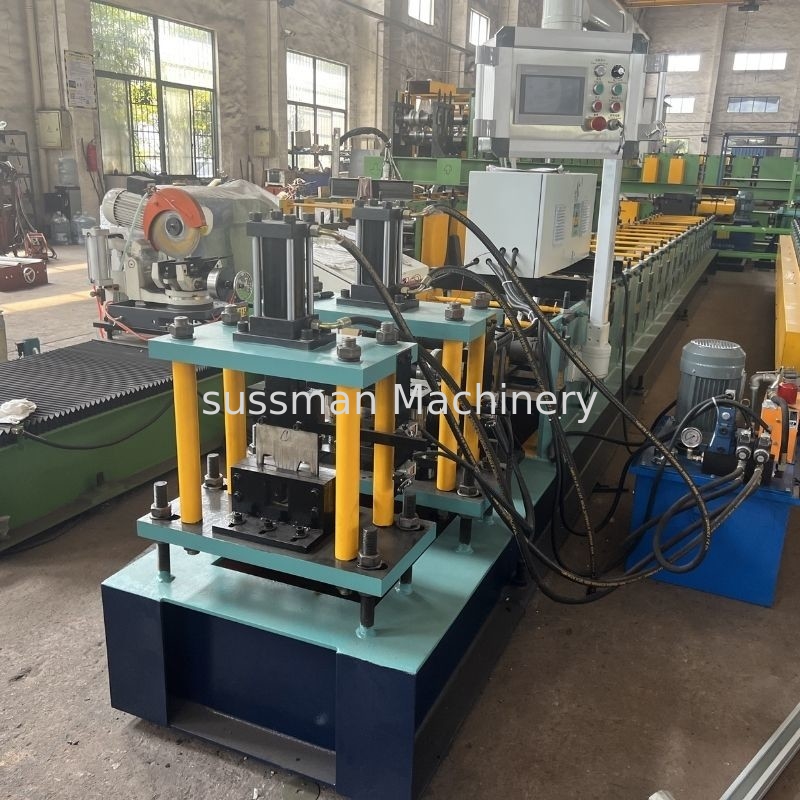

Machine Photo
