Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
0.75-1.0mm Thickness 300mm Wide Galvanised Metal Profile Sheet Composite Decking Roll Forming Machine For Concrete Floor
1. Technical Parameter
|
Number |
Items |
UnitType |
RF-ST |
|
1 |
Steel Thickness |
mm |
0.75-1.2mm for Color coated steel |
|
2 |
Forming Speed |
m/min |
8-12 |
|
3 |
Roller stands |
stations |
20 stations |
|
4 |
Roller Material |
mm |
45# steel, coated with chrome |
|
5 |
Shaft material and diameter |
mm |
Ф70mm, 45# steel, fire treated |
|
6 |
Main Motor Power |
Kw |
7.5 |
|
7 |
Hydraulic cutting Power |
Kw |
4KW |
|
8 |
Hydraulic pressure |
Mpa |
12 |
|
9 |
Power Supply |
|
380V, 50HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12Mov HRC60-62 |
| 12 | Machine weight | T | about 7 tons |
2. Machine List
|
5 tons manual de-coiler |
1 set |
|
Hydraulic cutting |
1 set |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
4 meters Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Profile Drawing
4. Application
Composite condeck floor decking is to support suspended concrete floors in steel or concrete construction or over-loaded masonry walls.
It is a lightweight and efficient system that is easy to handle and cut on site.
The ribs of the profile are fully enclosed in concrete, providing the advantages of a solid slab, with the savings of a composite slab.
There are no voids to compromise thermal performance and there is usually no need for positive reinforcement or fire emergency reinforcement.
5. Packaging & Shipping
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.

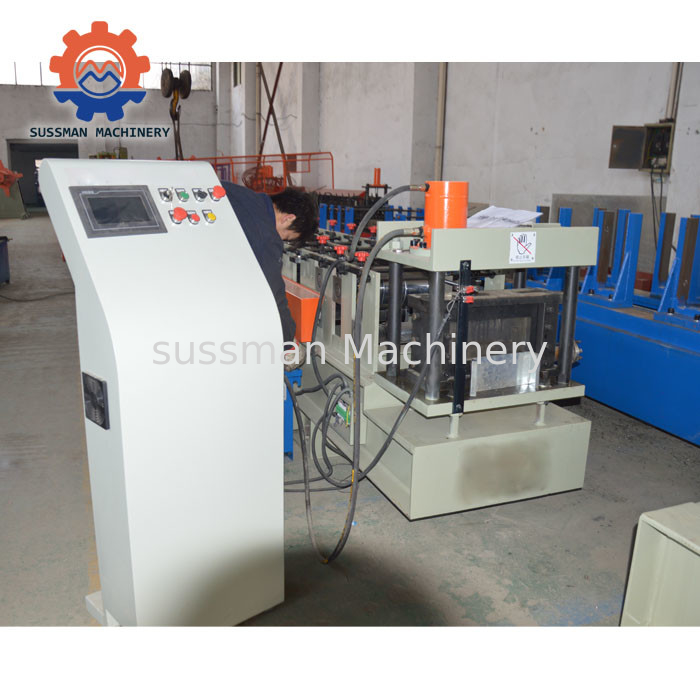

6. Machine photo
