6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking
  • 6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking
  • 6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking
  • 6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking
  • 6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking
  • 6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking

6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking

Place of Origin Wuxi, China
Brand Name Sussman Machinery
Certification CE
Model Number SS-WT
Product Details
Welding Edge:
6 Sides Box Beam Weld Machine
Horizontal Push To Adjust The Length:
By Liner Guide Way And Fix By Manual
Connector Thickness:
3mm
Diameter Of The Welding Wire:
0.8-1.0mm
High Light:

Step Box Beam Weld Machine

,

6Sides Step Box Beam Weld Machine

,

Step Box Beam Weld Machine 1.0mm

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Plastic film and wooden box
Delivery Time
75DAYS
Payment Terms
Western Union, D/A, L/C, D/P, T/T
Supply Ability
10 SETS PER MONTH
Product Description

Auto Feeding Storage Racking 6 Sides Step Box Beam Weld Machine







Rack Beam Welding Machine

Automatic Welding Machine

Storage Beam Welding Machine




Specifications:



1 Welding edge 3 sides of each end of the beam, total 2 ends
2 Speed 3 pieces in 1 minutes and 20 seconds
2 Length of the beam 1200-4000mm
3 Connector thickness 3mm
4 Diameter of the welding wire 0.8-1.0mm
5 Model of the welding unit TC-315F IGBT (Chinese brand)
6 Number of welding unit 6 sets
7 Main motor 2kwX2 stepping motor
8 Voltage 415v, 50HZ, 3 phase
9 Clamping By pneumatic
10 Turn over system By cylinder, gear and rack
11 Horizontal push to adjust the length By liner guide way and fix by manual
12 Size of the machine About 5.2mX1mX1.9m
13 Machine weight About 1200kgs
14 Packing Wooden box packing
15 Delivery time 50 days





Brand list:



1 PLC Delta
2 Touch screen delta
3 Air cylinder AirTac
4 Relay and switch Schneider

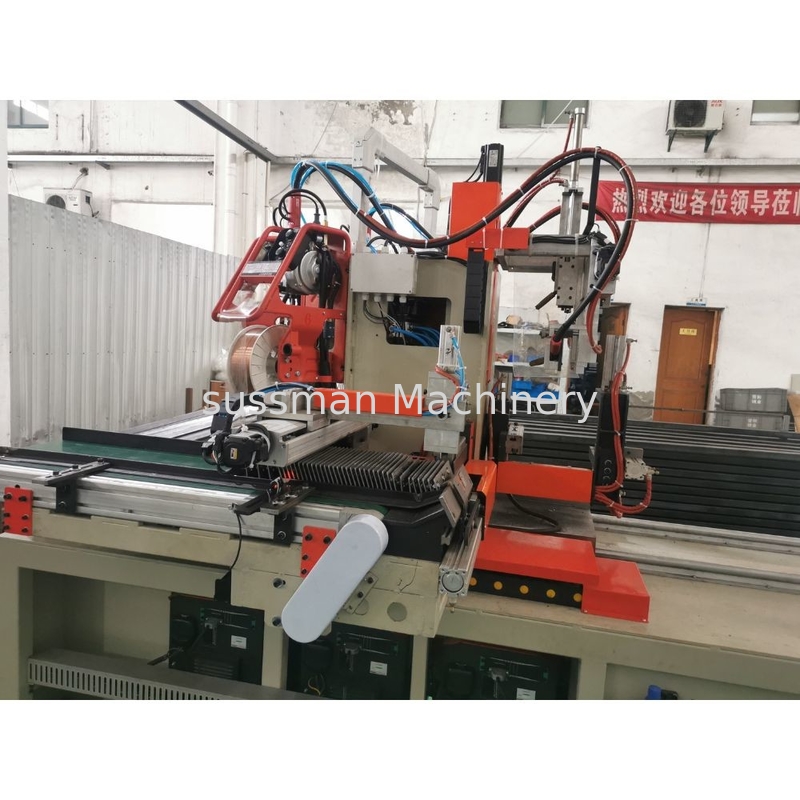

Machine Pictures:

6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking 0
 6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking 1

6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking 2



Packing



6 Sides Step Box Beam Weld Machine Auto Feeding Storage Racking 3



Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) The 4 guns operate at the same time .It is high welding efficiency and good Peffect.

4) Running in a high automatization and intellectualization .
