CZ Purlin Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | ISO9001 |
| Model Number | CZ |
1.0mm-3.0mm Thickness Quick Change Galvanized Steel C/U/Z Purlin Roll Forming Machine
Description
Purlin is widely using in industry building,horizontal beams or bars used for structural support in buildings. The machine can forms different size through change some rollers position. And also can punch and cut automatically as setting.
CZ Interchangeable roll forming machine can produce C U purlins and Z purlins.
This Roll Forming Machine is fully automatically, the flang, the height, the width,C shape to U shape are all adjustable automatically.
Technicial Speciafication
Profile Drawing:
Machine List:
| 5T Passive Un-coiler | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic punching device | 1 set |
| Control box | 1 unit |
| Hydraulic station | 1 unit |
| Output tables | 1 unit |
| Spare parts | 1 package |
| Safety cover | 1 unit |
| Hydraulic cutting device | 1 unit |
| Punching Mould | 2 sets |
Main Components of the Machine

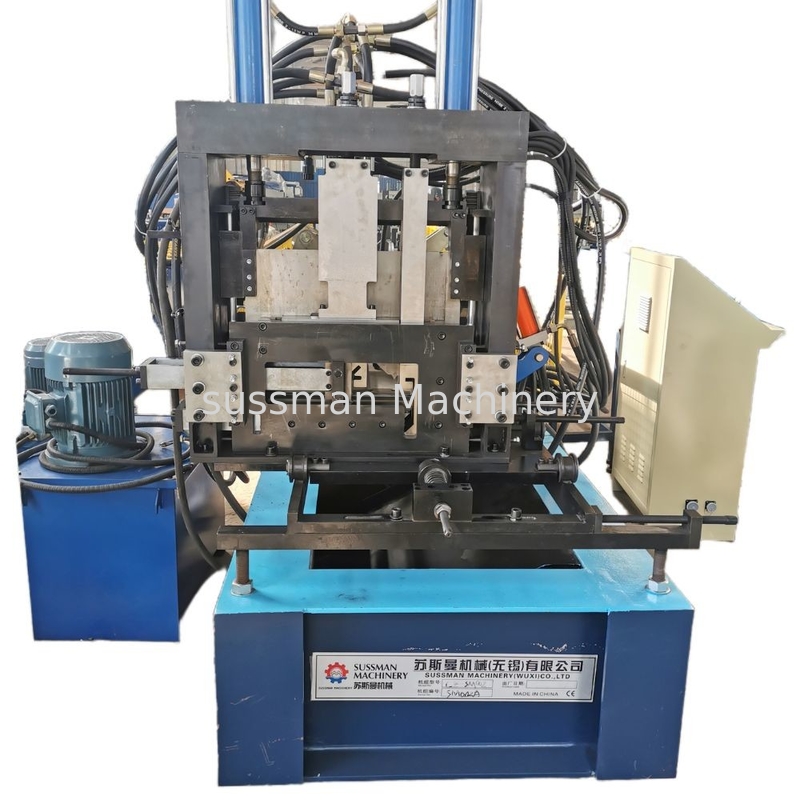

Pictures of the product:
Applications of C&Z purlin include:
1. Industrial construction
2. Hall and warehouse construction
3. Extension construction and renovation
4. Agricultural projects
Advantage:
1. Produce different purlin sizes without changing rollers or spacers.
2.No need to change cutter for different sizes.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range), helps to save material
5. Optional Punch hole at any position of purlin web side and flange side
