CZ Purlin Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-MP |

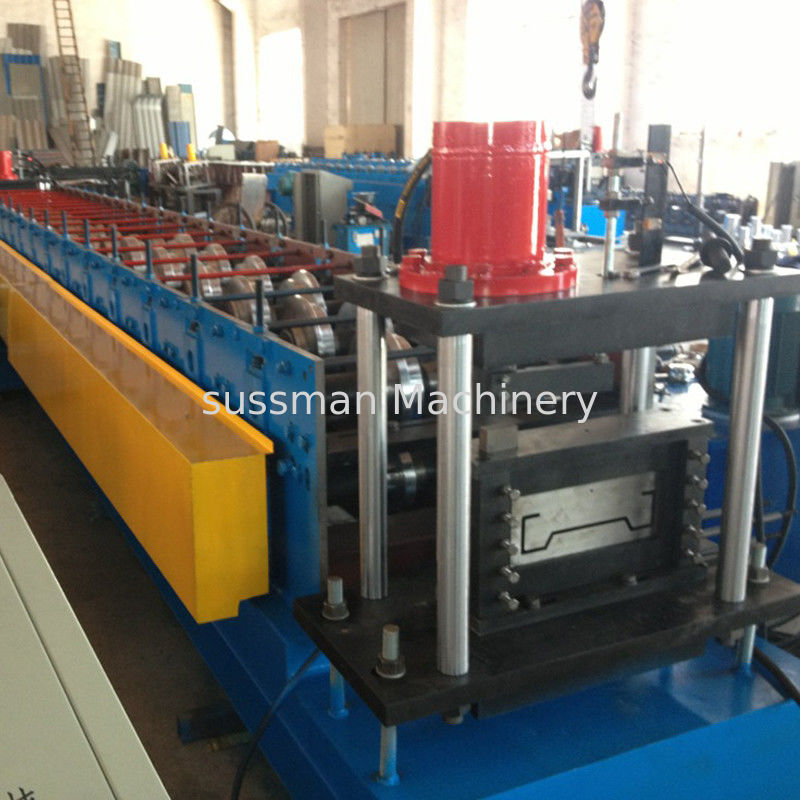

Galvanized Steel 1-2mm Thickness M Purlin Roll Forming Machine with Chain Drive
A "M purlin" refers to a type of structural component used in the construction industry. Purlins are horizontal beams or bars that provide structural support and stability to the roof or walls of a building. They are often used in steel building systems.
The term "M purlin" specifically refers to a purlin that has the shape of the letter "M" when viewed from the end. This shape typically consists of two flanges (horizontal sections) connected by a central web (vertical section). The flanges provide strength and rigidity, while the web helps distribute the load evenly across the purlin.
M purlins are commonly made of steel and are used in various applications such as roofing, cladding, and supporting structures. They are lightweight yet strong, making them a popular choice for construction projects. M purlins are typically installed horizontally and spaced apart to support the roof or wall panels.
The exact dimensions and specifications of M purlins may vary depending on the specific design requirements and building codes. They are often manufactured using roll forming machines, which can produce the desired profile by continuously bending a long strip of metal.
Overall, M purlins provide structural support and contribute to the stability and integrity of buildings, particularly in steel construction systems.
1.M Purlin Technical Parameter
| Roll Forming Machine(Roll Forming,Roll Former ,Steel Sheet Metal Machine) | ||
| No. | Item | Specifications |
| 1 | Material Width | As profile |
| 2 | Diameter of shaft | 76mm |
| 3 | Forming Speed | 8-12meters/min |
| 4 | Middle plate | 20mm |
| 5 | Material of shaft | 45#steel with tempering |
| 6 | forming thickness | 1.0-1.5mm |
| 7 | material of rollers | 45# steel |
| 8 | Cutting type | hydraulic cutting |
| 9 | Main power | 7.5kw |
| 10 | Main frame | 300H steel |
| 11 | Control system | PLC |
| 12 | Brand of electrical parts | Delta |
| 13 | Manual decoiler | 3 tons |
| 14 | Dimensions(L*W*H) | About 9.5*1.0*1.2M |
| 15 | Weight | about 8 tons |
2.Machine List
|
Equipment name |
Quantity |
|
3T manual uncoiler |
1 set |
|
Roll forming machine |
1 set |
|
Saw cutting |
1 set |
|
4 meters out tables |
1 set |
|
Control box |
1 unit |
| Spare parts | 1 package |
3.Each part of C Purlin Machine
1. 3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm
2. Leveling device
Put the raw material(steel plate) through the beach to manufacture and process
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi
3. Control Box
(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.
