Cable Tray Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-CT |
Cable tray roll forming machines are commonly used for cable management in commercial and industrial construction. This advanced roll former is capable of producing a variety of cable trays, such as solid bottom cable tray, trough cable tray, channel cable tray, perforated cable tray, non-perforated cable tray, and trunking cable tray. Additionally, different raw materials, including hot-dip galvanized steel, pre-galvanized steel, hot-rolled, cold-rolled steel, stainless steel, and aluminum, can be used. For these materials, the thickness range is 0.6mm-1.2mm or 1-2mm.
Moreover, you can set up 10 different lengths for cable tray production. Aside from the cable tray roll forming machine, we are also able to manufacture other machines,such as strut channel roll forming machine, DIN rail roll forming machine, and electrical enclosure box roll forming machine.
Technical Data:
5.1. Suitable Plate Material:
5.2. Working Speed: About 2-3 meters / min
5.3. Forming Steps: about 20 stations
5.4. Material of Roller: Cr12, Quench HRC58-62 Plated Chrome
5.5. Material of Shaft: 45# Advanced Steel (Diameter: 90mm), thermal refining
5.6. Driven system: Chain Driven
5.7. Main Power with reducer: 22KW WH Chinese Famous
5.8. Cutting: Hydraulic Cutting Cr12mov
5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
5.10. The whole machine is controlled by industry computer-PLC.
5.11 PLC--PLC-Delta
5.12 Encoder--Omron, Japan
5.13 Electric parts--Schneider
5.14 Adjust the width by the motors and the rails, controlled by the PLC system.
| Parameter | Value |
|---|---|
| Power supplier | 380V, 50 Hz, 3Phase |
| Motor | Siemens |
| Working Speed | 12-15 Meters / Min |
| Width of the profile | 200-500mm |
| Rollers | 18-20 |
| Material of Roller | Gcr15, Quench HRC58-62 Plated Chrome |
| Main motor power | 22Kw,18.5KW |
| Shaft diameter | 45# Steel |
| Encoder | Omron |
| Pump | Bosch |

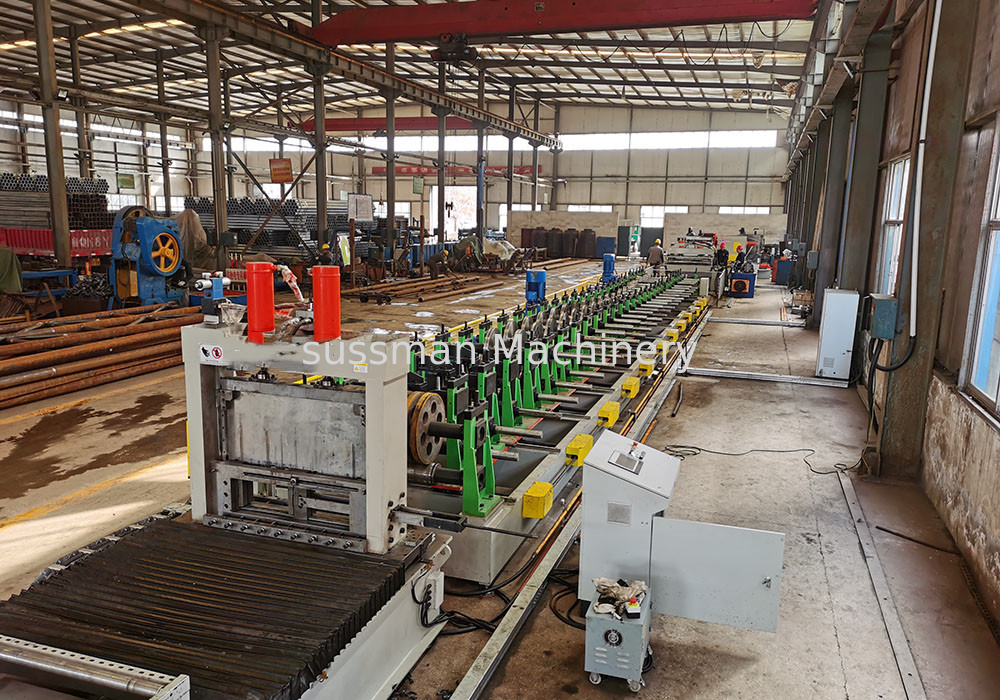

Sussman's Cable Tray Roll Forming Machine (RF-CT) is an ideal tool for producing cable trays with high efficiency. It is made with quality materials in Wuxi, China and certified by CE, SGS, ISO. This machine is equipped with 28-32 roller stations and 45# steel shaft diameter, allowing it to work at a speed of 12-15 meters per min. Additionally, it can form cable trays with heights ranging from 50-200mm and 18-20 rollers. This machine is suitable for producing cable trays with superior quality and accuracy. It is suitable for large-scale production in the fields of cable tray production, and cable tray roll and cable tray forming.
This Cable Tray Roll Forming Machine has a brand name of Sussman and a model number of RF-CT. It is originated from Wuxi, China, and holds certifications of CE, SGS, and ISO. It is equipped with a Bosch pump, about 28-32 stations of rollers, and a Siemens motor. The weight of this machine is 3.5T, and the power supplier is 380V, 50 Hz, 3Phase.
This machine is suitable for Cable Tray Manufacturing, Cable Tray Rolling, and Cable Tray Forming.
