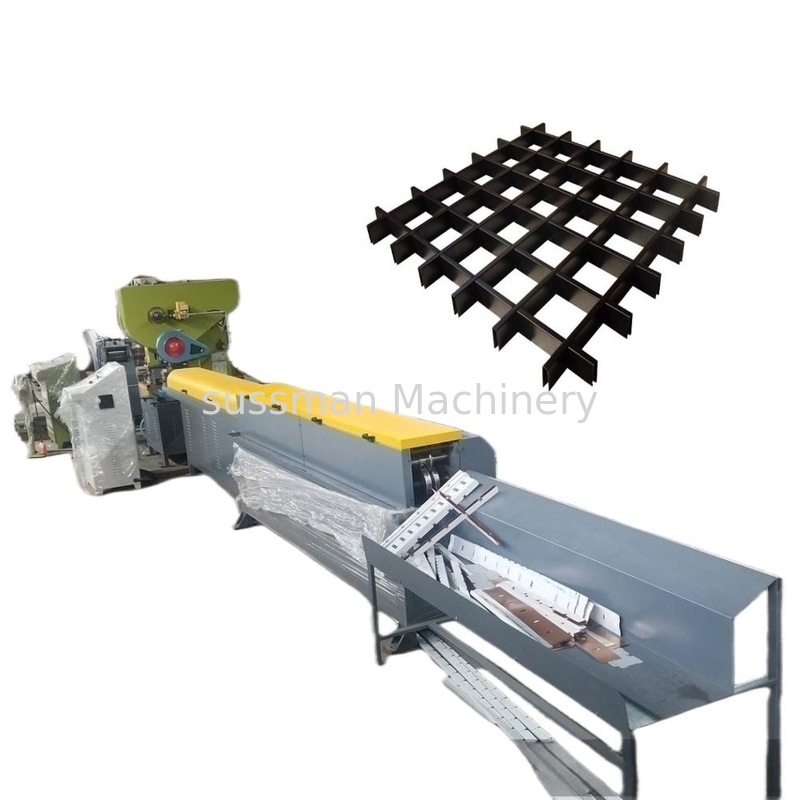

Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling
  • Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling
  • Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling
  • Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling
  • Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling
Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling

Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling

Place of Origin China
Brand Name SUSSMAN
Certification SGS.CE.ISO
Model Number SS-TG
Product Details
Type:
Grid Keel Roll Forming Machine
Material Thickness:
0.3-1.0mm
Forming Stations:
12 Stations
Roller Material:
45# Steel
High Light:

Decorative Grid Roll Forming Machine

,

50*10mm Grid Roll Forming Machine

,

Suspended Ceiling Stud Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
60-70 working days after deposit
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

50*10mm Aluminum Metal Grilyato Suspended Ceiling Decorative Grid Roll Forming Machine





Suspended cellular ceiling Grilyato is great for masking any engineering systems and communications located on the ceiling. At the same time, the design does not complicate the operation of the systems and allows maintenance without problems due to the dismantling of individual cassettes. Grilyato ceilings also reduce the overall noise level in the room due to the cellular structure, contributing to the creation of more comfortable conditions for work or leisure.

Open Cell Metal Ceiling production line is mainly use to produce the main and cross for open cell metal ceiling. There are decoiler, straightener, perforation press, cut-to-length and roll forming machine in the production line with electric system and hydraulic system. The main and cross which produce by our machine can be installed as open cell ceiling by manual. For ensure the production line more stable, we install the protect cover for this machine.


Technical Data:

1. Suitable Plate Material: thickness 0.3-0.4mm, Galvanized steel
2. Working Speed: 0-5 meters /min adjustable
3. Forming Steps: about 12 stations
4. Material of Roller: 45# Steel,
5. Material of Shaft: 45# Advanced Steel (Diameter: 50mm), thermal refining
6. Driven system:Chain driven
7. Main Power with reducer: 5.5KW WH Chinese Famous
8 Power supplier: 380V, 50 Hz, 3Phases, according to customer's requirements
9. The whole machine is controlled by PLC.

Machine List:
S.N
Equipment name
Quantity
1
3T hydraulic un-coiler
1 set
2
Servo feeder
1 set
3
Punching press machine JH21-63
1 set
4
Main machine
1 set
5
control box
1 set
6
Out tables
1 unit
7
Spare parts
1 package
8
Safety cover
1 set
9
Pre-cutting device
1 set
10
Punching moulds
1 set
11
Belts table
1 set
Profile Drawing:

Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling 0
Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling 1
Application:

It is widely used on industrial and commercial buildings, building decorative material market, subway, other big places, interior partitions, suspended ceiling, airport, bus station, museum, opera house, exhibition hall, shopping centre, conference hall, bar and etc.
Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling 2
