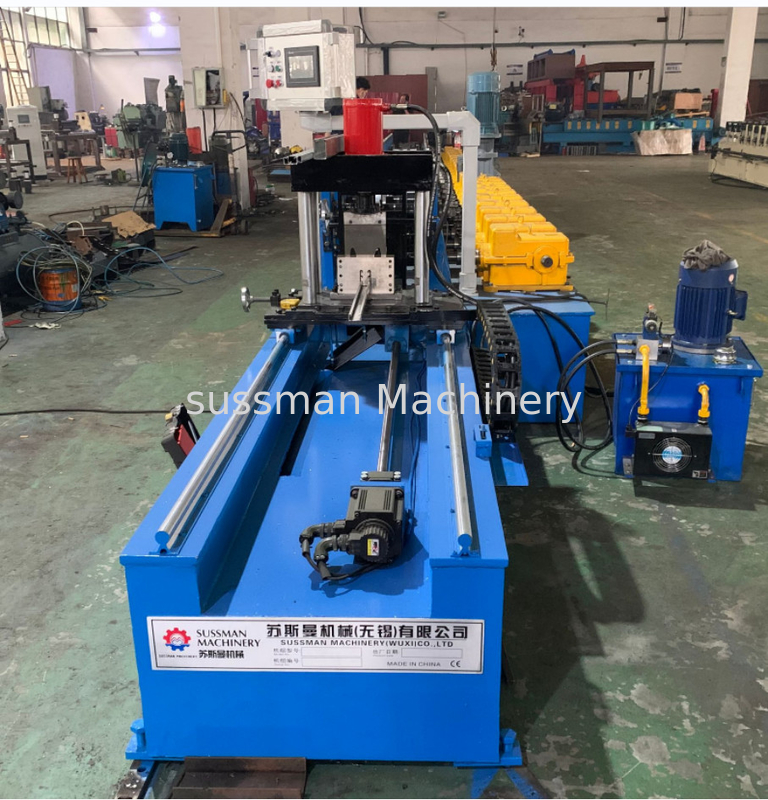

Strut Channel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
The Strut Channel Roll Forming Machine is an advanced automated production equipment, designed to fabricate strut channel with a wide range of widths and heights. It is capable of producing strut channels with adjustable width ranging from 70-110mm and adjustable height ranging from 150-180mm. The voltage used is 380V/50Hz/3Phase and the forming speed is adjustable from 0-12m/min. It is equipped with a hydraulic decoiler for efficient and seamless operation. This machine offers an efficient and cost-effective solution to your strut channel production needs. It is the perfect choice for producing strut channels with precise dimensions and high quality.
| Property | Value |
|---|---|
| Forming Speed | 0-12m/min |
| Voltage | 380V/50Hz/3Phase |
| Driven System | Gear Box Drive |
| Height Adjustment | 150-180mm Adjustable |
| Width Adjustment | 70-110mm Width Adjustable |
| Weight | 3T |
| Size | 7000*1000*1500mm |
| Main Motor Power | 18.5KW |
| Thickness | 1.2-2.6mm |
| Decoiler | Hydraulic Decoiler |
The Strut Channel Roll Forming Machine manufactured by Sussman with the model number RF-ST is a highly efficient and reliable roll forming machine made in Wuxi, China. It is certified by CE, SGS, ISO to ensure its highest quality and safety standards. This roll forming machine is capable of working in a speed of 5-6 Meters/min with its 45# Steel roller material, and it has a 150-180mm adjustable height. It has 22 stations of forming steps, and its size is 7000*1000*1500mm.
