0.05-0.25mm 1250mm Width Stainless Steel Embossing Machine Production Line

0.05-0.25mm 1250mm Width Stainless Steel Embossing Machine Production Line

Embossing machine spefication

Our company specialized in designing and making metal sheet embossing machinery,there are many series of steel embossing machine which are suitable to you.

• Material (where applied to the figure): stainless steel.
• Harvesting before stamping sheet.
• Material sheet stamping: sheet 0.8-1.5mm
• Billet size (sheets): 1250 mm x 2500 mm.
• Sheet metal thickness (where it leaves an imprint): from 0.5 to 2.0 mm.
• Depth footprint (the depth of the picture after embossing): 50 microns = 1/20 mm = 0,05 mm.
• Speed stamping: not important (but not less than 3 metres per minute).
• Type of stamping: unilateral model rolling. (Figure applied only on the front side. Back ready sheet, remains smooth and clean.)
• Roller type: removable. (That we could change the picture.)
• In the proposal. Specify the cost of additional rollers.

1.Uncoiling Machine

1.Outline data: About 2000×900×1350mm

2.Coiled material mode:Φ200×1200mm air shaft

3.Support the weigh: ≤1000kg

4.Side with brake systems: Magnetic powder brake

2.Embossing Machine

3.Recoiling Machine

1.Outline data: about 2600×900×1350mm

2.coiled material mode:Φ200×1200mm air swelling shaft

3.support the weigh: ≤1000kg

4.Motor power: 220V 60Hz 3Phase 100 Nm torque motor,Speed: 0-18m/min

5.Gas rising axis side can be fine-tuned before and after

4. Flower Pattern

5.Applications

Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations, wall cladding, ceilings, bathrooms, kitchens and balconies.

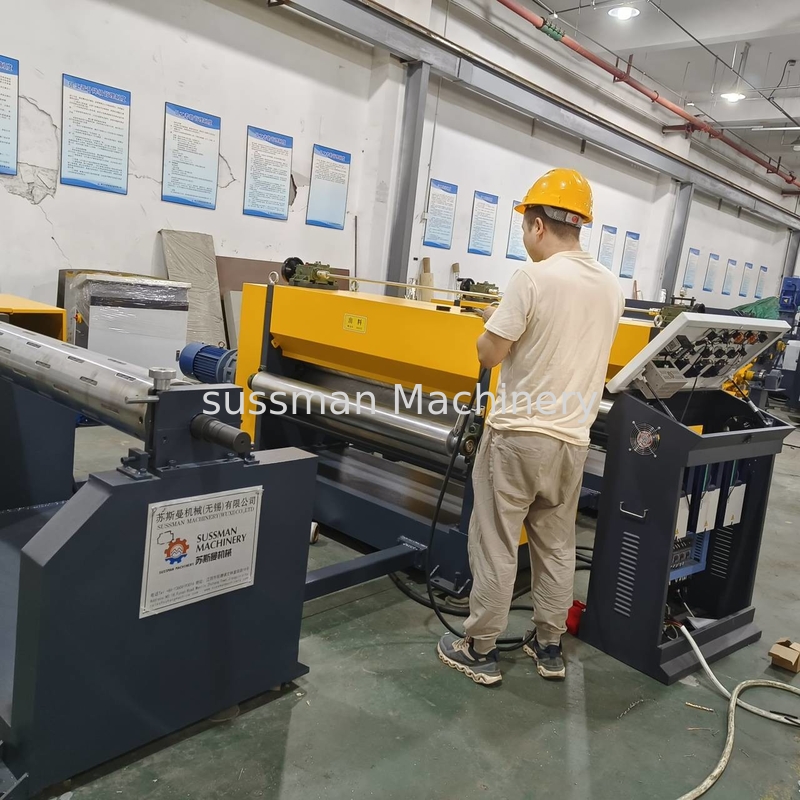

6. Embossing Machine Photo
