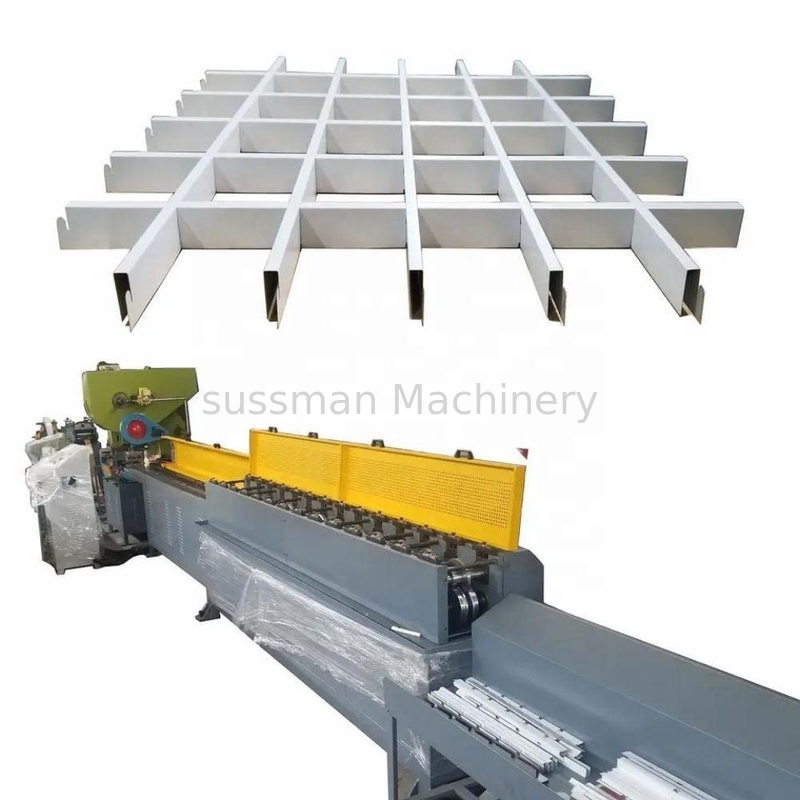

0.6mm-1.0mm Thickness Metal Aluminum Ceiling Suspended Cellular Grid Ceilings Grilyato
This type of ceiling, comprising vertical staves, allows interplay with light in diaphanous, open spaces. Using a system of black lacquered battens, a structure of vertical staves 100, 150 or 200 mm in height is devised. These are separated according to the size of the stave, thus allowing a plethora of different combinations.
The staves are manufactured in highly resistant and durable aluminium and since this forms an open drop ceiling, it is easy to maintain and the plenum space can be accessed easily.
Technical Data:
| Items | Specifications | |
| Material of coil | Material Thickness | 0.6-1.0mm |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | About 10 meters /minute |
| Roller Stations | About 12 stations feeding | |
| Roller Material |
Gcr15 coated with chrome
|
|
| Maim Motor Power | 5.5 kw | |
| Motor cutting Power | 4kw | |
| Cutting system | Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Cutting blade | 3 sets | |
| Electrical control system | Electric Source |
220 V, 60HZ,3 phase Also can satisfy Customer’s requirey |
| Control System | PLC (Delta) as list in the note | |
| Weight | About 4 tons | |
| Way Of Drive | 1.2 inch chain |
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
