Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-PU |
Galvanized Steel PPGI Metal Fascia Cover Roll Forming Machine with 0.3-0.8 mm Thickness
Gutters are functional, stylish, and designed to form a neat finish to the edge of both domestic and commercial roofing. They are also designed to minimise the risk from serious water damage to the building, making guttering a wise investment.
Fascia is used as a base to attach the gutters to, or as a cover to hide the fixing space between the roof, eaves and wall. More than just functional, Fascia is designed to form a neat, attractive edge between the roofing and wall surface.Fascia is also used as a barge on gable roofs.
Technical Data:
| Suitable Raw Material | |
|---|---|
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 610mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Diameter of forming rollers shafts | 55mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 2.2kw | |
| Electric voltage | According to customer’s requirement |
Machine List:
Working Flow of Standing Beam
Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables
Profiles of Standing Beam

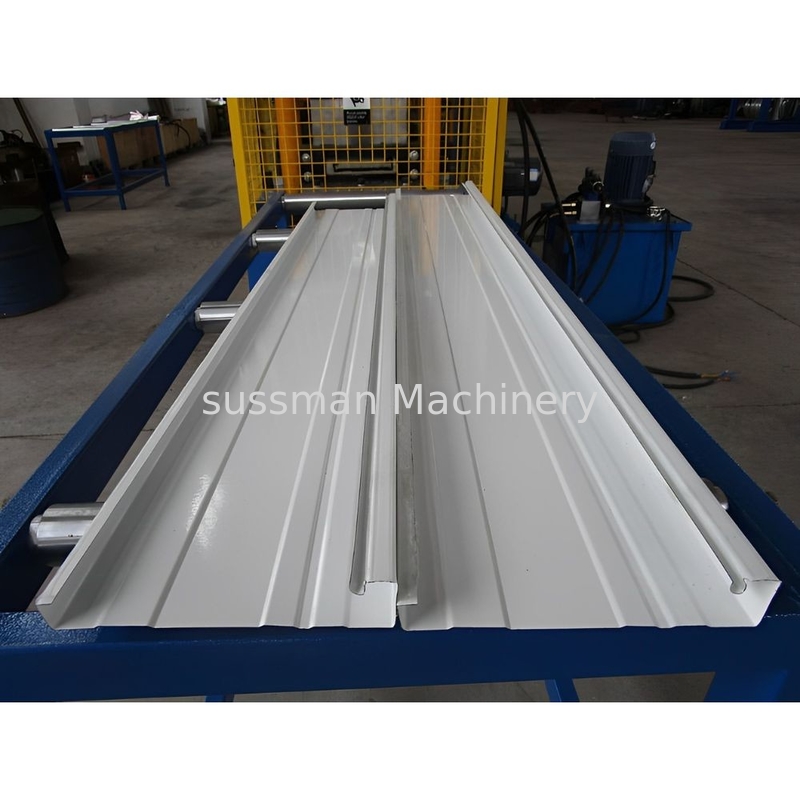

Finished Products:
Application:
