Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-PU |

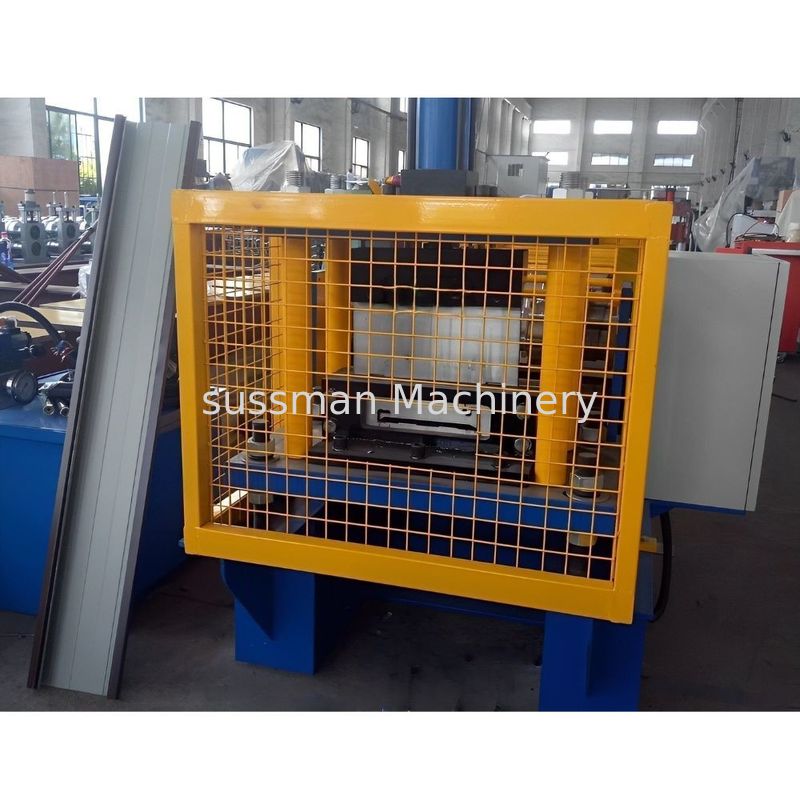

Gutter Roofing Galvanized Steel Fascia Cover Roll Forming Machine
Gutters are functional, stylish, and designed to form a neat finish to the edge of both domestic and commercial roofing. They are also designed to minimise the risk from serious water damage to the building, making guttering a wise investment.
Fascia is used as a base to attach the gutters to, or as a cover to hide the fixing space between the roof, eaves and wall. More than just functional, Fascia is designed to form a neat, attractive edge between the roofing and wall surface.Fascia is also used as a barge on gable roofs.
Technical Data:
| Suitable Raw Material | |
|---|---|
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 610mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Diameter of forming rollers shafts | 55mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 2.2kw | |
| Electric voltage | According to customer’s requirement |
Machine List:
Working Flow of Standing Beam
Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables
Profiles Drawing:
Fascia 135 is used on both eave line and gables in conjunction with both the Quadline Gutter and Colonial Quad Gutter to provide a quality Fascia and Gutter Solution.
Fascia 155 is used in conjunction with Squareline gutter and Box Gutter 115 and other continuous spouting systems and looks great with any residential roof finish.
Used on both eave line and gables in conjunction with the Colonial Quad Gutter to provide a quality Fascia and Gutter Solution. Fascia 185 is also compatible with most gutter profiles and looks great with any residential roof finish.
Finished Products:
Application:
