| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-PU |

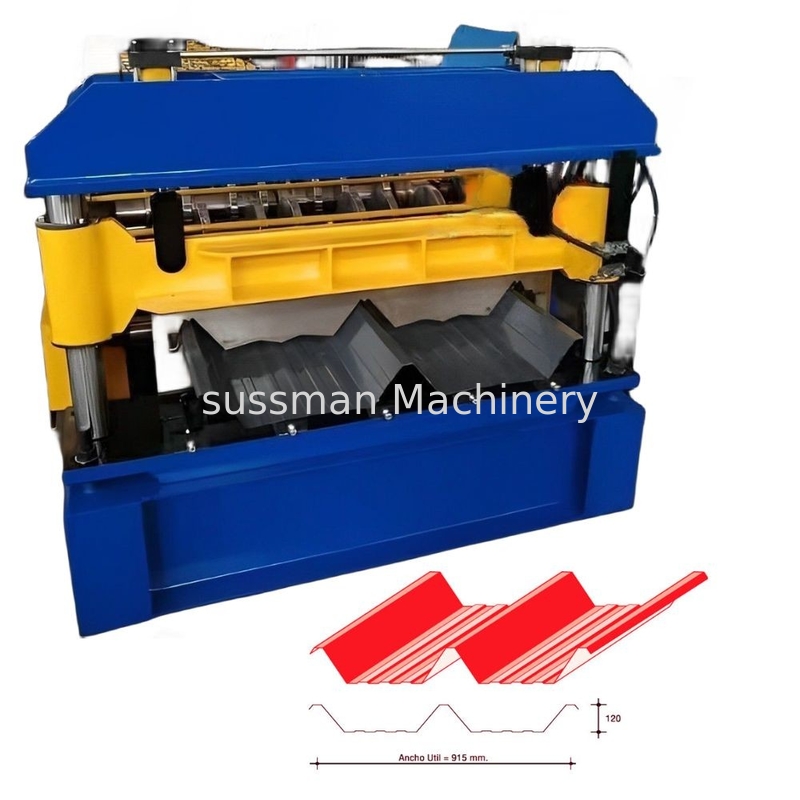

Peru Popular TR3 Trapezoidal Roof Panel Sheet Roll Forming Machine with 0.3mm-0.8mm Thickness
Trapezio Tile Forming Machine 100/952, or T100 is popular in Brazil
trapezoidal shaped T90 is popular in Argentina
TR-3 in Peru
Technical Parameter
1.Passive uncoiler 5 ton
2.Main motor power:7.5KW*2
3.Motor power of hydraulic station:5.5KW
4.Forming station: about 38 stands
5.Main machine size:9.5 m×1.2m×1.25m
6.Forming speed: 10m/min
7.Diameter of roller shaft:¢76mm
9.Roller surface coating with chrome:single face≥0.05mm
10.Forming thickness:0.3-0.8mm
11.profile according to GB/T12755-91 standards
12.material of cutting blade: Cr12
13.frequency: Yaskawa
14. PLC Siemens
Machine List:
| 5 ton passive de-coiler | 1 set |
| Main roll forming machine with wheels | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 1 unit |
Profile Drawing:
Sample pictures:
Application:
