CZ Purlin Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-CP |

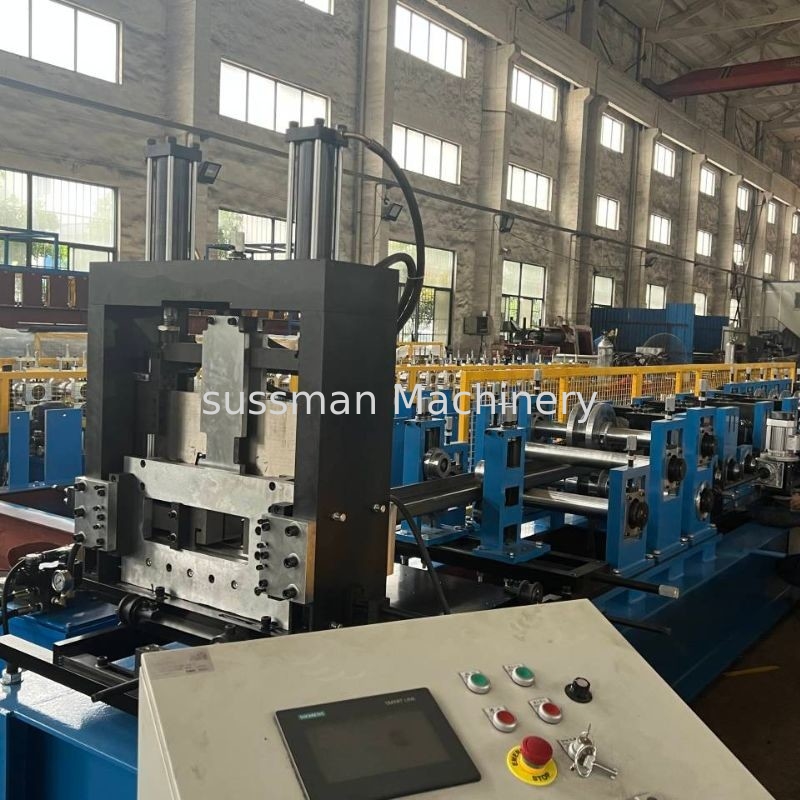

2.0-3.0mm Galvanized Steel Steel Frame Supported C Channel Steel Roll Forming Machine
|
Material of coil |
Material Thickness |
2.0-3.0mm |
|
|
Width |
from 100mm to 300mm |
|
De-coiler |
Weight |
3 tons manual decoiler |
|
Forming system |
Rolling Speed |
0-12 m/min |
|
Roller Stations |
About 22 roller stations |
|
|
Roller Material |
Gcr15 Steel with quenching 50-55HRC |
|
|
Shaft Material |
45# Steel Diameter 76mm shaft |
|
|
Main Motor Power |
18.5KW |
|
|
Hydraulic cutting Power |
5.5KW |
|
|
Cutting system |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
1 set of cutting blade |
|
|
Electrical control system |
Electric Source |
380V, 50HZ, 3phase |
|
Control System |
PLC with touch screen |
|
|
Weight |
About 8 tons |
|
|
Way Of Drive |
Chain driven |
C Purlin Technical Parameter
|
NO. |
Description |
Quantity (set) |
|
1 |
3T Manual decoiler |
1 |
|
2 |
Guiding device |
1 |
|
3 |
Roll forming system |
1 |
|
4 |
Transmission system |
1 |
|
5 |
Hydraulic cutting&punching |
1 |
|
6 |
Support table |
2 |
|
7 |
Hydraulic station |
1 |
|
8 |
Control box |
1 |
|
9 |
Spare parts and tools |
1 |
The advantages of C purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Steel purlin profile design
Steel purlins are mainly used to provide lightweight, efficient roofing and cladding support for framed structures.
They are roof framing members that support the weight of the roof and deck.
They run parallel to the building eave and are either supported by the walls of the building or rafters.
Each part of C Purlin Machine
1.3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm
2.Leveling device
Put the raw material(steel plate) through the beach to manufacture and process
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi
3. Punching and cutting device
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
hydraulic station pressure: 20 MPa
Hydraulic coil:46#
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine
cutting blade material:Cr12 Mov steel with high treatment
4.Control Box
(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.
