7.5KW Main Motor High Speed 25m/Min 0.8-1.2mm Light Gauge Steel Forming Machine

7.5KW Main Motor High Speed 25m/min 0.8-1.2mm Light Gauge Steel Framing Machine

Main Specifications

Equipment Description


Main Specifications:
Size 89*41mm/38mm
Thickness 0.8-1.2mm(G300-G550Galvanzied coils and Aluzinc )
Feeding width 182mm
Standard Producing speed 300-700m/h
Max producing speed 25m/min
Main motor 7.5kw servo motor
Power supplier 380V 50Hz 3phases or according to your request
Hydraulic station 7.5kw
Hydraulic tank capacity:100L
Hydraulic cooling : Fan cooling
Hydraulic pressure: computer set
Frame and punching dies: Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
Tolerance: +- 0.5mm
Inkjet printer: EC-JET
Machine size: 5000*1000*1500mm
Weight:3000kg
Color: according to your request
De-colier: bearing 3 tonne, automatical decoiler

VERTEX BD design software
1.The wall, floor and roof structure is produced automatically, saving design time.
2.Automatic 3D molding, insure 100% accuracy.
3.With analysis project function, the software can calculate bearing capacity.
4.Create frame work 3D map and 3D decoration view.
5.The whole building frame can be resolve to independent unit drawing.
6.Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and
other matching material.
7.Create the processed data including the marked work piece, docking with the equipment.
8.Software maintenance and training fee.
9.Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.

Equipment description
1). Automatic vertical single head uncoiler : 1 set
a.Using hand tightening design, Coil ID:460mm-520mm, coil OD:1400mm, Loading:3000kg
b.Frequency conversion automatic uncoiling
c.Power:2.2KW

2). Frame: Using steel plate welding, the overall annealing to stress treatment, to ensure long-term use without deformation; and
CNC machining center processing to ensure dimensional accuracy.

3). Arch: Main arch is box structure, box is CNC machining center processing, auxiliary arch is independent structure.

4). Rolling mould: Cr12mov die steel, after vacuum hardened HRC60-62 ° to refine the hole and the end of the face, CNC lathe
finishing the roller surface.

5). Main axis: Material for 40Cr tool steel, quenching and tempering heat treatment, external grinding finishing

6). Drive system: Servo motor and reducer linkage, between the wheel with precision hard tooth gear oil immersion operation, to ensure that the use of long time without wear.

7). Hydraulic system
a. Energy storage structure, energy saving and environmental protection
b. Hydraulic components: Germany Bosch Rexroth products

8). Punching mould
Die model material are used S45C tool steel, mold insert with D2 or SKD11 high-quality steel, mold parts with Japan's rice
products.

9). Electrical parts
a.Original imported motion controller and PLC
b. International first-class brand low voltage components

10). CNC inkjet printer
a.Configuration of industrial-grade high quality solvent-based electronic inkjet printer, print writing clear and solid, easy to
install
b.Common solvent based inks,easy to buy, and economical to use
c.Automatically prints automatically generated by the design software, without human intervention
d.By Frame Mac LGS maker production control system can add any additional information, such as, company name,logo, websites and so on.

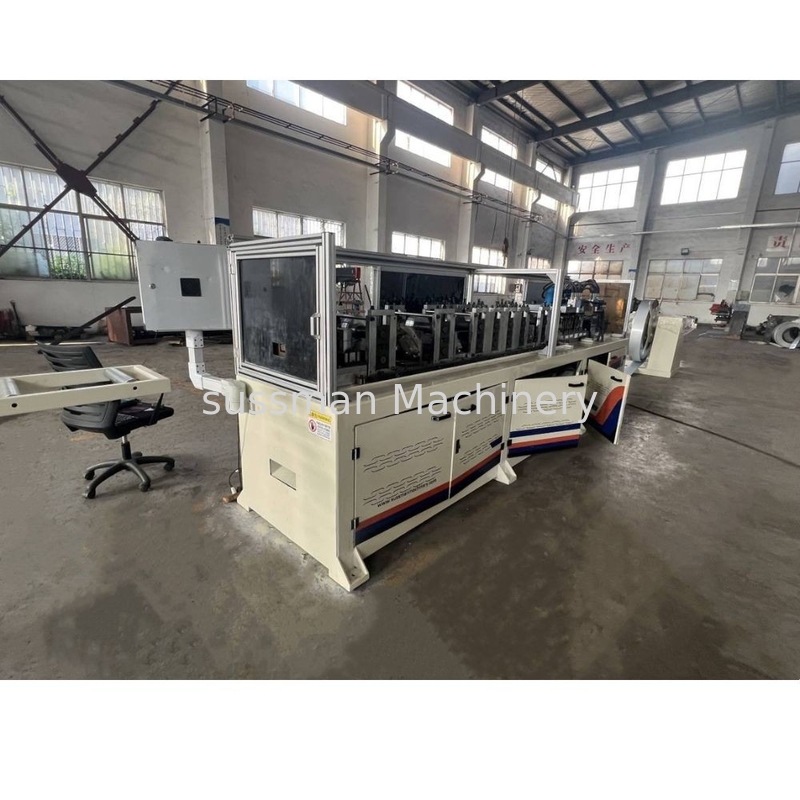

Our machine photo
