Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |
22-32 Gauge PPGI GI Zinc Sheet Wavy Corrugated Roof Panel Roll Forming Machine
The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
Technical parameter:
Rolling Speed: 0-10m/min
Feeding width: 1000mm
Steel sheet Thickness: 0.12-0.3mm galvanized sheet
Control System: PLC Siemens
Roller Stations: about 22-24 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
Motor Power: 7.5kw main motor
Hydraulic power: 3kw
Hydraulic Pressure: 12Mpa
Tolerance: +1.5mm
Power supplier: According to Customer’s Requirements
Way Of Drive:1.2 inch single chain
Machine List
| Machine list | 5 tons hydraulic de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Safety cover | 1 set | |
| Spare parts | 1 set |
working flow
Profile Drawing
This drawing shows the drawing of ONDULADO-48, is not only popular in Chile, also in Africa, South Africa, the Philippines, Indonesia, Thailand and etc.
The length after corrugation is 1000mm, the height wave is 14mm or 18mm, we can customized the wave size and total length according to your demand.

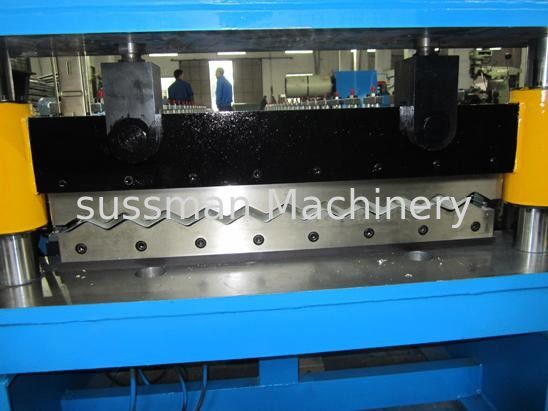

Machine Shows
