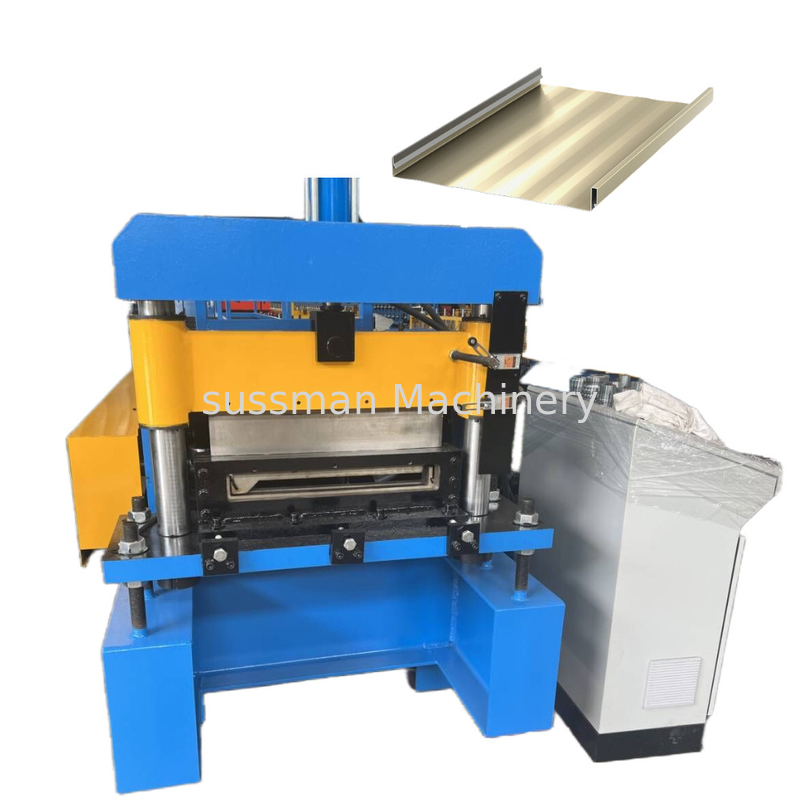

Aluminum Galvalume Concealed Fastener 12" 16" 18" Width Adjustable Clip Lock 175 Standing Seam Roof Panel Roll Forming M

Place of Origin	Wuxi, China
Brand Name	Sussman
Certification	CE, SGS, ISO
Model Number	RF-PU

Product Details

Type:

Snap Lock Roll Forming Machine

Forming Station:

About 22-24 Stands

Forming Speed:

10m/min

Forming Thickness:

0.3-0.8mm

High Light:

0.3mm roof panel roll forming machine

galvalume roof panel roll forming machine

0.3mm roofing sheet profile machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

negotiable

Packaging Details

Film nad steel

Delivery Time

50 days after deposit

Payment Terms

Supply Ability

10 sets/month

Product Description

Aluminum Galvalume Coverage 12"-18"Clip Lock 175 150 Standing Seam Roll Forming Machine

Standing seam roof panels have been used on roofs of traditional and contemporary homes for more than a century and these standing seam metal roofing panels are commonly used on roofs of commercial businesses because of the roofing's outstanding durability. These standing seam roof panels have area clean and graceful lines that have been an enduring favorite on a wide range of architecture.

SL (Snap-Lock) 175 metal roofing panel is a snap locking standing seam metal roofing system that can be used for architectural and light structural applications. The snap lock metal roofing panel is secured with concealed clips and the snap locking standing seam metal roofing panel ribs snap lock securely together without the use of special tools. The snap lock metal roofing panels provide very good wind uplift resistance. SL 175 Snap Lock standing seam metal roofing panel can be specified as an accent feature or a total roof system for schools, shopping centers, banks, hotels, offices, and a variety of other applications.

SL150 is a snap lock standing seam roof panel that installs with concealed clips. The snap-lock standing seam roof panel
installation offers high levels of wind uplift protection and also allows these standing seam roof panels to float on the roof
deck, allowing for expansion and contraction with temperature extremes. Compared to Advantage-Lok standing seam metal roof panels, SL150 standing seam roof panel ribs have a more narrow, knife-edge profile that some customers prefer on their metal roofs. SL150 standing seam roof panel ribs snap securely in place over the clip to provide your roof maximum wind and weather resistance.

Item NO	Description	UnitType	RF-RP
1	Material Thickness	mm	0.3-0.8mm for Color coated steel
2	Forming Speed	m/min	0-10
3	Roller stands	stands	20
4	Roller Material		45# steel, coated with chrome, fire treated, HRC 58-62
5	Shaft diameter and materail		Ф70, 45# steel, fire treated, HRC 58-62
6	Cutting device		Hydraulic cutting
7	Main Motor Power	Kw	7.5
8	Hydraulic cutting Power	Kw	4
9	Hydraulic pressure	Mpa	12
10	Power Supply		According to client’s requiry
11	Tolerance	mm	1.5
12	Material of cutting		Cr12
13	Control system		PLC with touch screen
14	Main machine weight	T	6-7 Ton
15	Outer specification	m	711.2
16	Transmission Type		1 inch chain drive

Standing Beam Main Components

5 ton passive de-coiler	1 set
Main roll forming machine	1 set
Hydraulic Cutting	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
4 meters passive table	1 unit
Spare part	1 package

Profile Drawing:

Sample pictures:

Advantage for Standing Beam

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Working Flow of Standing Beam

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables

Standing Beam Roof Panel Roll Forming Machine 4 - 8m / min 16 Stations

Customes Visiting

Standing Beam Roof Panel Roll Forming Machine 4 - 8m / min 16 Stations

Loading Pic.

Standing Beam Roof Panel Roll Forming Machine 4 - 8m / min 16 Stations
