Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |

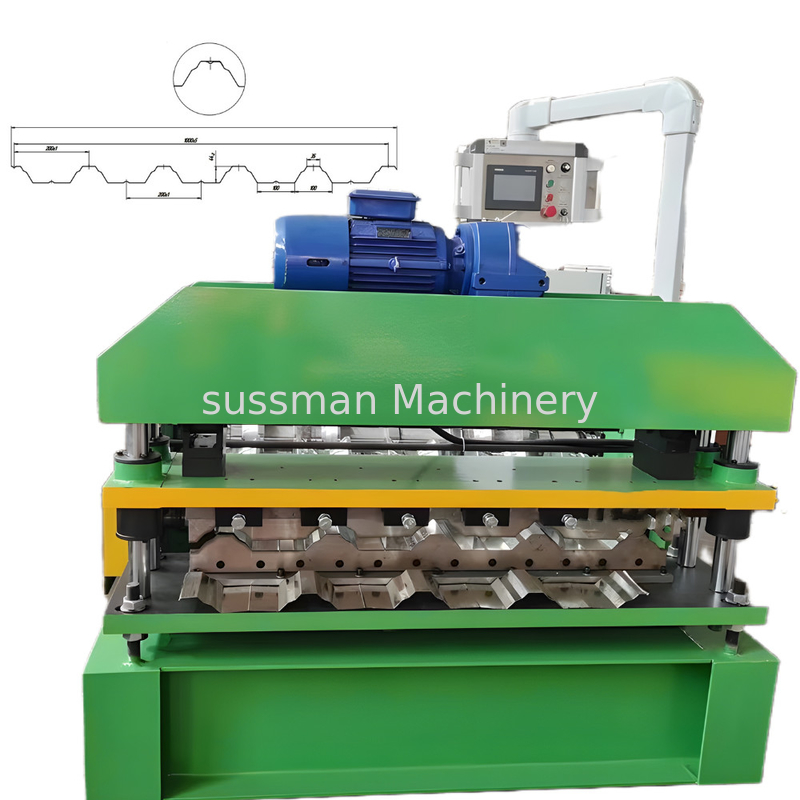

Ukraine Galvanized Metal PPGI T44 T57 Corrugated Roof Sheet Roll Forming Machine
T44 T57 corrugated sheet is a roofing corrugated iron used in industrial construction in case of increased surface durability requirements. It has improved rigidity and leakage characteristics thanks to its 44 mm profile height and is used for roofing of large roofs in all areas of construction. Also suitable for roofs with a small roof inclination down to 9 degrees.
Technical parameter:
| Number | Items | UnitType | RF-DL |
| 1 | Steel Thickness | mm | 0.12-0.3mm 0.3-0.8mm PPGI and GI |
| 2 | Forming line Speed | m/min | 10-12 |
| 3 | Roller stands | stand | About 20-22stands |
| 4 | Roller Material | mm | #Gcr15, coated with hard chrome quenching |
| Shaft material and diameter | mm | Ф76 45# steel, coated with chrome | |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | 415V, 50HZ,3 phase | |
| 9 | Tolerance | mm | +/-1.5 |
| 10 | Material of cutting | Cr12mov HRC60-62 | |
| 11 | Control system | PLC with touch screen | |
| 12 | Machine net weight | T | 8 |
| 13 | Out size | mm | 10000*1300*1000 |
Machine List
| Machine list | 5 tons hydraulic de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Safety cover | 1 set | |
| Spare parts | 1 set |
working flow
Profile Drawing
Machine Shows
Application:
