Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Exposed Fastening System 26 Gauge 29 Gauge 5V Crimp Roof Panel Roll Forming Machine
1. Zinc roofing machine technical parameter
|
Coil Material |
Material thickness |
0.3-0.8mm PPGI Color steel |
|
Material width |
As profile |
|
|
ROLL MACHINE |
Frame Structure |
350H-beam |
|
Roller Station |
About 16 roller stations |
|
|
Roller Shaft |
76mm 45# Steel Solid,Precision |
|
|
Shaft Material |
45# Steel Solid,Precision |
|
|
Roller Info. |
45# steel harden chromed plated |
|
|
Transmission |
Chain 1 inch |
|
|
Motor Power |
7.5KW |
|
|
Output Speed |
About 10-15m/min |
|
|
CUTTING |
Frame Structure |
350mm Carbon Steel |
|
Cutting Type |
Hydraulic Automatic |
|
|
Cut Performance |
No scrap,no deformation |
|
|
Cutting Blade |
Cr12Mov,hardness 60-62℃ |
|
|
HYDRAULIC SYSTEM |
Installation |
inside,easy for operation |
|
Pump Motor |
4KW |
|
|
COMPUTER |
Electrical Control |
DELTA PLC DELAT Inverter |
|
Length Control |
Rotaty Encoder from Omron |
|
|
Length Tolerance |
±1.5mm |
|
|
Touch Screen |
DELTA or Siemens |
2. Roofing Machine List
|
5 T passive de-coiler |
1 set |
|
Guiding Platform |
1 set |
|
Pre-cutting device |
1 set |
|
Main roll forming machine |
1 set |
|
Hydraulic cutting machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Profile Drawing of roofing machine
5V Crimp is most common in residential settings but is also suitable for light commercial applications.
The 5V Crimp roof panel offers an ideal old-time, residential appearance.
5V Crimp is also an aesthetically-pleasing solution for light commercial applications.
The 5V Crimp panels require a solid roof deck with a waterproof membrane.
Double ribs on the panel edges create the classic 5V look and conceal an anti-siphon channel.

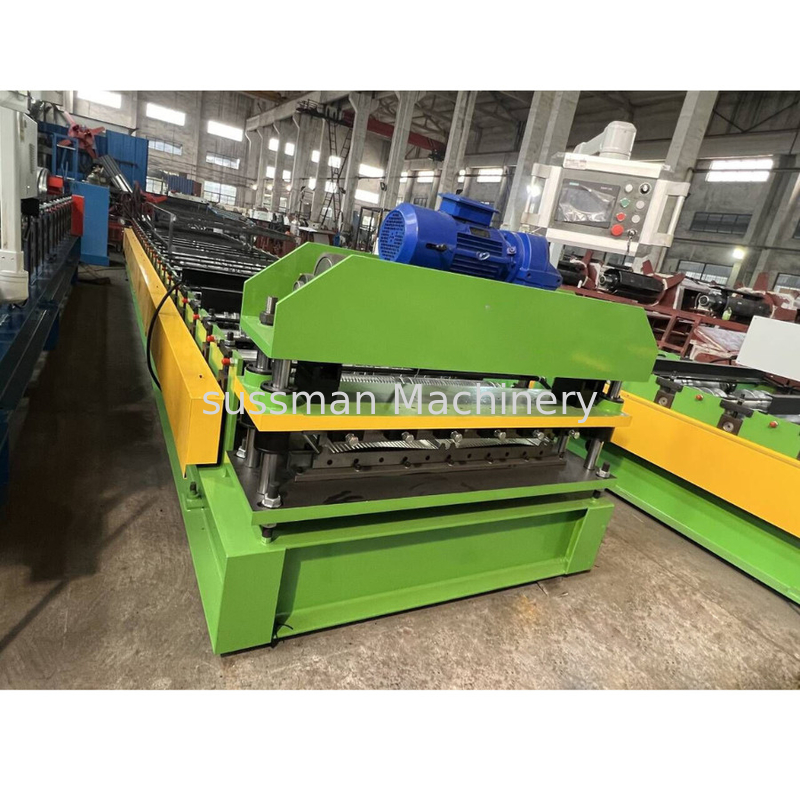

5. Roofing Machine Photo
Machine produce the roofing sheet by roll forming. Feed flat sheet into machine, set how long one sheet and how many pieces sheet you need, machine will start to produce the roofing sheet and counting the quantity by itself.
We provide customized service, customer can provide the roof sheet design he want to produce, we will make the machine according to customer's requirement.
