Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |

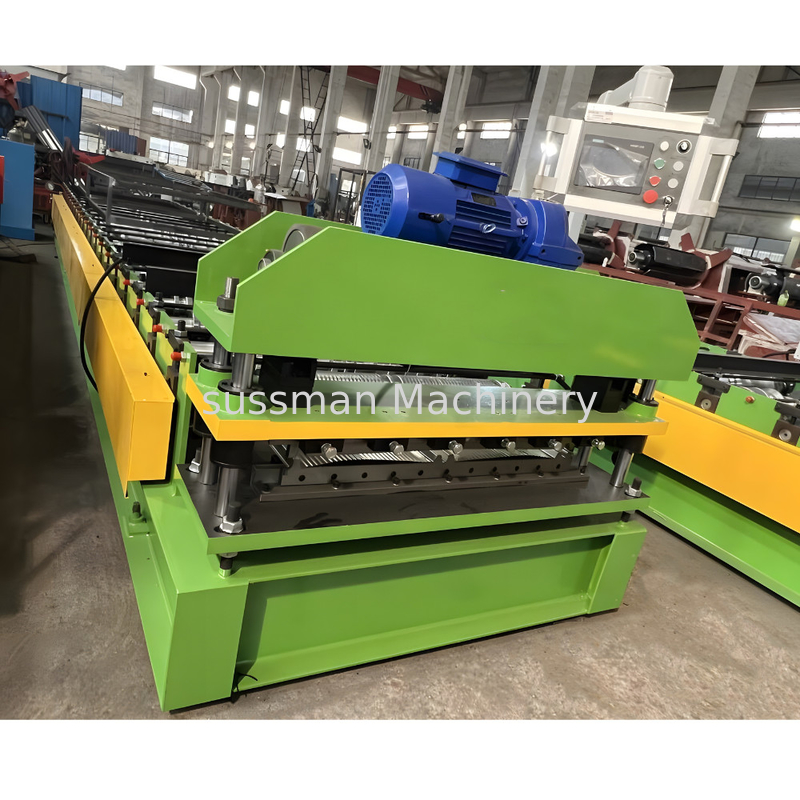

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine
These low-maintenance, aluminum roofing and siding panels offer an attractive appearance and extra durability, complementing your agricultural structure for years to come. To see if Twin Rib panels are the right fit for your agricultural application, get in touch with us!
Technical parameter:
| Number | Items | UnitType | RF-DL |
| 1 | Steel Thickness | mm | 0.12-0.3mm 0.3-0.8mm PPGI and GI |
| 2 | Forming line Speed | m/min | 10-12 |
| 3 | Roller stands | stand | About 20-22stands |
| 4 | Roller Material | mm | #Gcr15, coated with hard chrome quenching |
| Shaft material and diameter | mm | Ф76 45# steel, coated with chrome | |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | 415V, 50HZ,3 phase | |
| 9 | Tolerance | mm | +/-1.5 |
| 10 | Material of cutting | Cr12mov HRC60-62 | |
| 11 | Control system | PLC with touch screen | |
| 12 | Machine net weight | T | 8 |
| 13 | Out size | mm | 10000*1300*1000 |
Machine List
| Machine list | 5 tons hydraulic de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Safety cover | 1 set | |
| Spare parts | 1 set |
working flow
Profile Drawing
Machine Shows
Application:
