Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
50-120m/Min 0.4-1.2mm Thickness Ceiling System Omega Profile Furring Channel Roll Forming Machine
Theceprofiles produced from hot-dip galvanized steel by cold forming method and used in suspended ceiling systems by connecting to Omega Ceiling U profiles with special clips.
Thickness is normally 0.4-1.2mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel.
If you need to more efficiency and high speed, then we recommend you adpot the servo flying shear with no stop system, the Max. whole line speed can be reached at 50-120m/min.
Also we can design the machine as your requirement or drawings.
1. Technical Parameter
|
Stud Track Roll Forming Machine |
||
|
No. |
Item |
Specification |
|
1 |
Suitable material |
Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
|
|
Thickness(mm):0.6-0.9 |
|
|
|
Yield strength: 350 - 550MPa |
|
2 |
Nominal forming speed(m/min) |
50-120m/min |
|
3 |
Forming station |
14 |
|
4 |
Decoiler |
Manual decoiler |
|
5 |
Main machine motor |
30KW Famous China brand |
|
6 |
PLC brand |
Delta |
|
7 |
Inverter brand |
Yaskawa |
|
8 |
Driving system |
Gearbox drive |
|
9 |
Rollers’ materail |
Steel #45 |
|
10 |
Station structure |
Cast iron |
|
12 |
Cutting system |
Servo following cutting |
|
13 |
Power supply requirement |
380V 50HZ or customized |
|
14 |
Machine color |
Industrial blue or customized |
2. Machine Components
| 3T manual decoiler or automatic decoiler | 1 set |
| Hydraulic non stop cutting | 1 set |
| Roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Control box system | 1 unit |
| Out tables | 1 unit |
| Safety cover | 1 unit |
| Tool box | 1 package |
3. Application
Omega furing channel is a hat-shaped corrosion-resistant framing component used to furr out masonry walls and ceiling assemblies.In concrete wall applications, furring channel is installed vertically to the wall surface using concrete nails or power-driven fasteners.
Gypsum panels are then screw-attached to the furring channels. In drop ceiling applications, furring channels can be attached directly to the underside of the building structure using Metal Furring Channel Clips, tie wire, screws or power-driven fasteners. Heavier gauge furring enables greater spans and loading capacity. 18- or 16- gauge furring is commonly used for purlins in exterior applications.
4. Profiles we can make

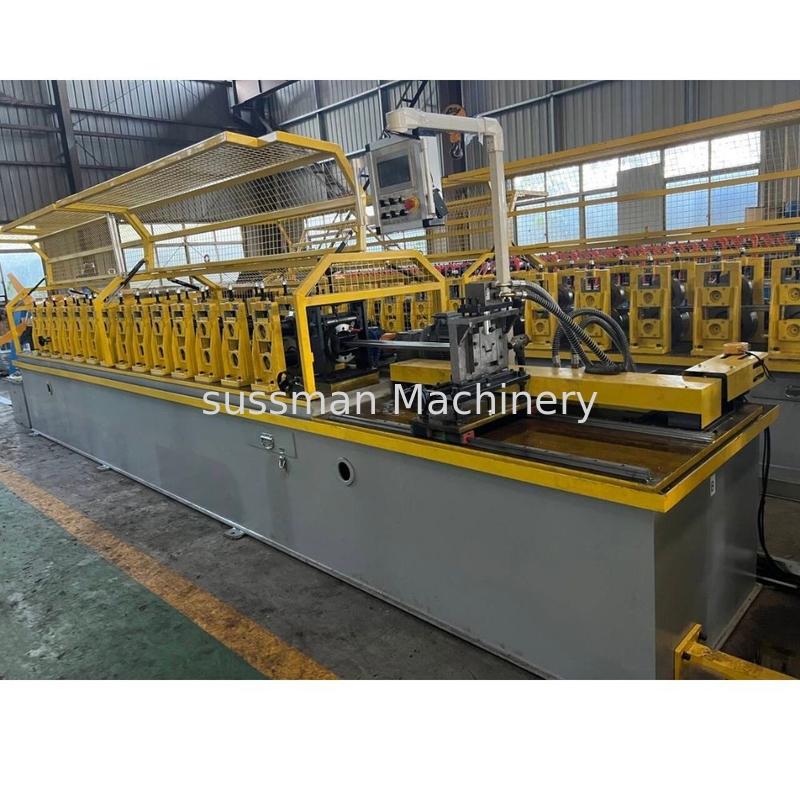

5.Machine picture
