Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-PBR |
914mm Wide Galvanized Steel Aluminum Corrugated Zinc Roof Sheet Roll Forming Machine
Corrugated metal roof sheets are available in various thicknesses, typically ranging from 0.3mm to 0.8mm. The choice of thickness depends on factors such as the span of the roof, the expected loads, and the specific requirements of the building.
Residential roofing: Corrugated metal roof sheets with a thickness of around 0.4mm to 0.7mm are commonly used for residential roofing applications. They provide durability, weather resistance, and a lightweight option for covering homes, garages, sheds, and other residential structures.
Commercial and industrial roofing: For commercial and industrial buildings, corrugated metal roof sheets with thicker gauges, ranging from 0.8mm to 1.5mm, are typically used. These thicker sheets offer increased strength, durability, and resistance to heavy loads, making them suitable for warehouses, factories, agricultural buildings, and commercial structures.
Agricultural applications: Corrugated metal roof sheets with a thickness of around 0.9mm to 1.2mm are commonly used in agricultural buildings such as barns, stables, and poultry houses. They provide protection against weather elements, including rain, snow, and wind, while also being resistant to pests and fire.
Architectural applications: Corrugated metal roof sheets are also used in architectural designs to create unique and modern aesthetics. Thinner gauges, such as 0.4mm to 0.6mm, are often chosen for these applications to achieve a lightweight and visually appealing result in structures like restaurants, retail buildings, and public spaces.
It is important to consult with roofing professionals or manufacturers to determine the appropriate thickness of corrugated metal roof sheet for specific applications, as factors such as local climate, building codes, and structural requirements may influence the selection.
Technical parameter:
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 0-30m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8mm |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 22KW |
| 1.6 | Dimension | About 13000×1600×1200(mm) |
| 1.7 | Effective width | 914mm |
| 1.8 | Feeding Coil width | 1092mm |
| 1.9 | Roller stations |
About 31 stations
|
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | Φ80mm |
| 1.12 | Transmission | By chain 1.2 inch |
| 1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Hydraulic station | 5.5kw |
Machine List:
| No. | Name | Quantity |
| 1 | 5 ton hydraulic decoiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | Hydrulic station | 1 set |
| 4 | Servo following cutting | 1 set |
| 5 | Control box | 1 set |
| 6 | Out table | 1 set |
Working flow
Profile Drawing

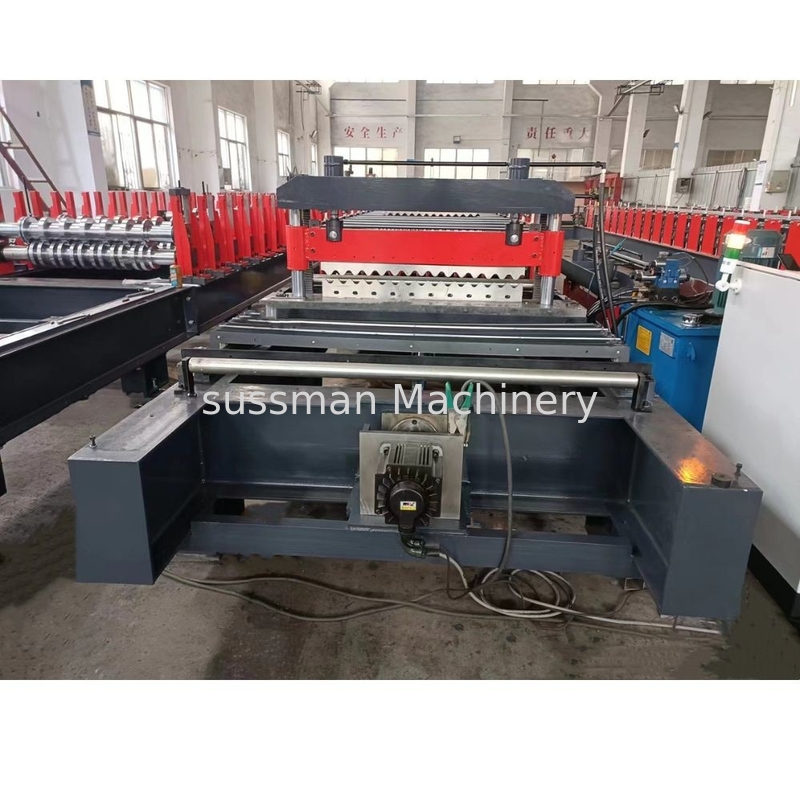

Machine Shows
Application
Company Introduction
Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
