18 Roller Station Roof Panel Roll Forming Machine 5 Ton Manual Decoiler

China 18 Roller Station Roof Panel Roll Forming Machine 5 Ton Manual Decoiler supplier
18 Roller Station Roof Panel Roll Forming Machine 5 Ton Manual Decoiler supplier 18 Roller Station Roof Panel Roll Forming Machine 5 Ton Manual Decoiler supplier 18 Roller Station Roof Panel Roll Forming Machine 5 Ton Manual Decoiler supplier

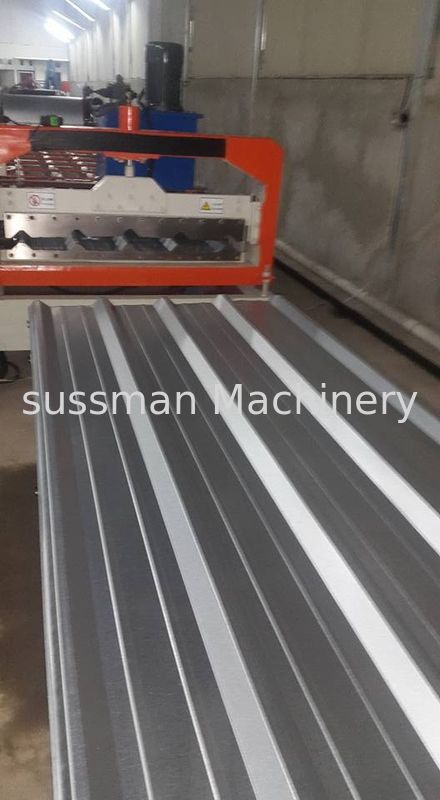

Large Image :  18 Roller Station Roof Panel Roll Forming Machine 5 Ton Manual Decoiler

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-SM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: USD 11000-16000 per set
Contact Now
Detailed Product Description
Decoiler In Side Diameter: 508-610mm Roller Stations: 18 Stations
Way Of Drive: 1.2 Inch Chain Machine Size: 8000mmx1500mmx1000mm
Machine Weight: 6 Tons



18 Roller Station Roof Panel Roll Forming Machine 5 Ton Manual Decoiler







1. Technical Parameter

  • Rolling Speed : 10-12m/min(cutting time is not include)
  • Steel sheet Thickness: 0.4-0.7mm color painted sheets
  • Control System: PLC:
  • Roller Stations: 18 stations
  • Roller Material : 45# forge steel, coated with chrome
  • Shaft Material and DIA: ¢75mm,material is 45# forge steel
  • Maim Motor Power: 7.5kw
  • Hydraulic Pressure: 12Mpa
  • Material Of The Stations: Wall plate
  • Tolerance: +1.5mm
  • Power supplier:220V, 60HZ,3 phase
  • Way Of Drive:1.2 inch single chain
  • Color Of The Machine :blue
  • The size of the forming machine:8000*1500*1000mm
  • Machine weight: about 6 tons



2. Working Flow



Uncoiling - Infeed guiding - Roll forming- Cut to Length-Out put table







3. Machine Components



5 ton passive decoiler  1 set
Main roll forming machine  1 set
PLC control box  1 unit
Hydraulic station 1 unit
Out table 2 units





4.  Packaging and shipping

1). Tighten to container with steel wire rope and welded machine with container
2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
3). PLC contral system and motor pump are packed in wooden box with water proof paper coverage



5. Our service



1.Installation and Training of Machine Manufacturer:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service of Roll Forming Machine for Sale:
a.One year guarantee for whole roll forming machine for sale.
b.24 hours technical support by email or calling
c.If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
