High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems

China High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems supplier
High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems supplier High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems supplier High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems supplier

Large Image :  High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems

Product Details:

Place of Origin: china
Brand Name: Sussman
Certification: CE ISO 9001
Model Number: SS-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: steel +film
Delivery Time: 60-90 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Name: Angle Steel Roll Forming Machine Material: Galvanized Steel
Material Thickness: 0.6-1mm Forming Stations: 16 Stations
Roller Material: Cr40 Steel With Quenching Dirve System: Chain Drive
Power Supply: 380V, 50Hz, 3Phase Forming Speed: 10-12m/min
Machine Weight: About 5 Tons Main Motor Power: 5.5 KW

High Speed Colour Steel Angle Profile Making Machine Flying track shear system


Technical Parameter




Items

Specifications

Material of coil

Material Thickness

0.45-0.8 mm galvanized

De-coiler

Weight

3 ton manual

Forming system

Rolling Speed

15-20m/min

Roller Stations

About 13 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel Diameter 75mm shaft

Maim Motor Power

5.5 kw

Hydraulic cutting Power

3 kw

Cutting
system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

220V, 60HZ,3 phase

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand



Weight

About 3.5 tons



Way Of Drive

1 inch single chain



Size of machine

Length 6500mm* Width 600mm* Height 800m


 Main Components



Machine list

3 ton passive de-coiler

1 set

Feeding with guide

1 set

Main roll forming machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Stop cutting device

1 unit

Safety cover

1 unit

Out table

2 units

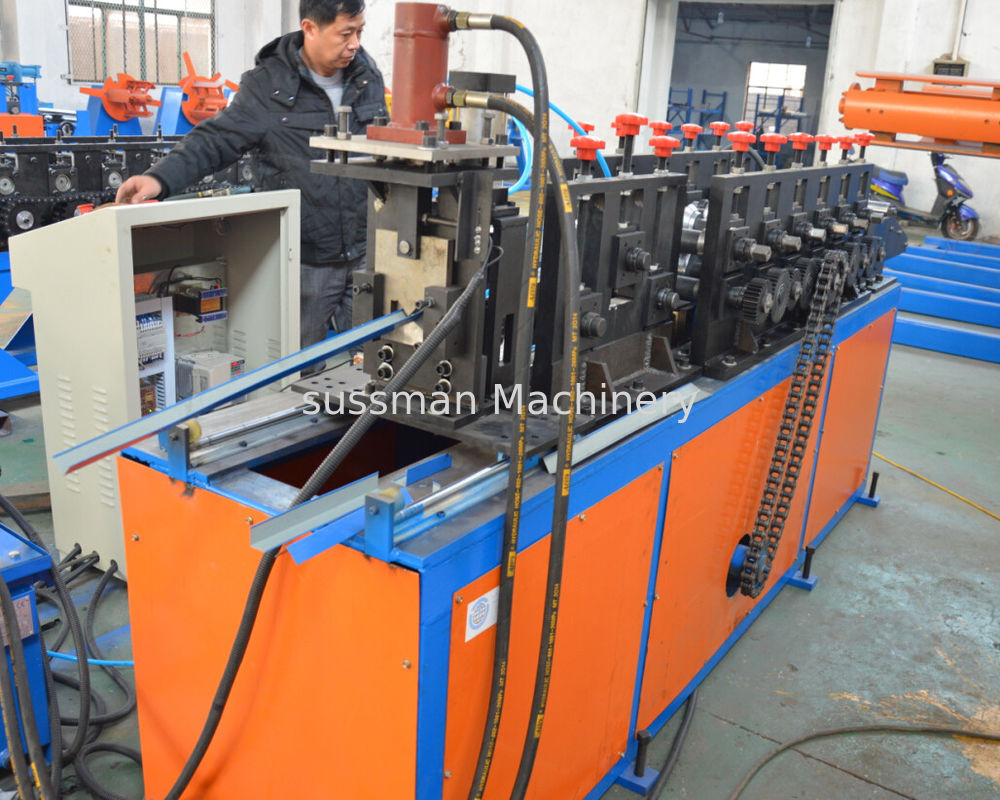

Machine pictures

High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems

High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems

High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems

Working Flow of Roll Forming Machine
feedingwithguide—Rollforming——Cutting—Products collecting
High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems
Standard Profile Drawing of product
High Speed Colour Steel Angle Profile Making Machine , metal roll forming systems
