Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment

China Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment supplier
Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment supplier Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment supplier Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment supplier

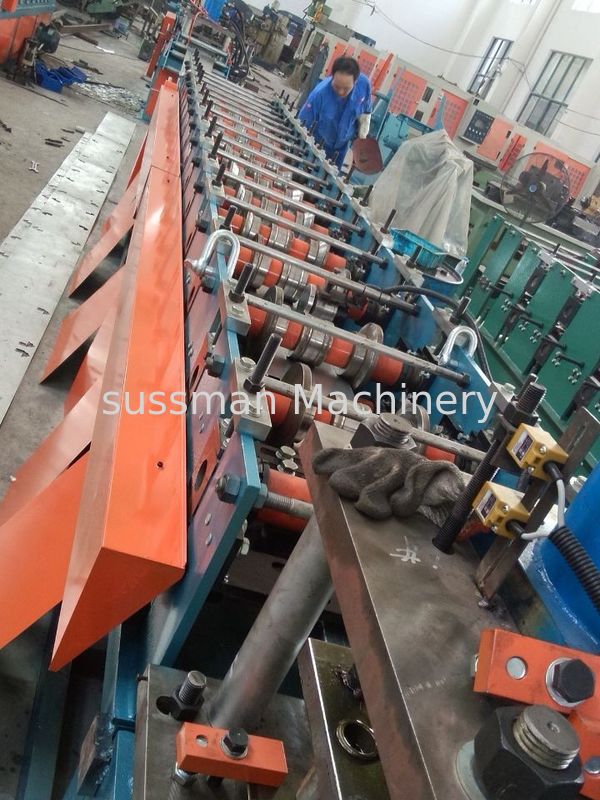

Large Image :  Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment

Product Details:

Place of Origin: China (mainland)
Brand Name: SUSSMAN
Certification: SGS. CE. ISO
Model Number: SS-FD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire.
Delivery Time: 60 working days after deposit
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: Galvanized Steel Sheet Material Thickness: 1.5mm
Forming Stations: 16 Stations Roller Material: 45# Steel With Quenching 60mm
Dirve System: Chain Power Supply: 380V, 50Hz, 3Phase
Forming Speed: Up To10m/ Min Machine Dimension: 7mx0.8mx0.5m
Control System: PLC With Touch Screen

Fire Damper Roll Forming Machine







 Technical Parameter







Items



Specifications

Material of coil



Material Thickness



1.5mm



Un Coiler



3 tons manual

Forming system



Rolling Speed



About 10m/min



Roller Stations



About 16 stations



Roller Material



Gcr15 coated with chrome



Shaft diameter



65mm



Maim Motor Power



11kw



Pinching motor



2.2kw



Motor cutting Power



7.5kw

Cutting system



Material Of Cutting



CR12mov with quench treatment



Hardness



HRC58-62



Tolerance



+-1.5mm



Cutting blades



3 sets

Electrical control system



Electric Source

380V, 50HZ,3 phase



Also can satisfy Customer’s requirey



Control System



PLC (Panasonic) as list in the note





Weight



About 8 tons





Way Of Drive



1.2 inch chain







 Main Components



Machine list



5 ton passive de-coiler

1 set



Leveller

1 set



Punching

4 sets



Main roll forming machine

1 set



PLC Control box

1 unit



Hydraulic station

1 unit



Out table

2 units







Working Flow of Roll Forming Machine



 De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table










Profile of product



Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment















 Photo Gallery





Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment





Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment





Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment












Fire Damper Roll Forming Machinery Fully Automatic Roll Making Equipment












Loading pictures
