Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CCC, SGS, ISO9001, CE |
| Model Number | SS-KS |
Roof panel K-Span Roll Forming Machine
Technical Parameter
Item NO. | Description | Offered Specification |
1 | Product Line speed | 12-15m/min(not include cutting ) |
2 | Suitable material thickness | 0.6-2.0mm |
3 | Raw material | Pre-paint Color Steel Coil yield strength≤G250MPa |
4 | Dimension | 10400mm × 2250mm × 2300mm about |
5 | Levelling device | 7 roller levelling including 3 top rollers and 4 bottom rollers |
6 | Roller stations(stages) | 16 stations |
7 | Roller material | bearing steel, quenching treatment |
8 | Shaft diameter | Φ76mm ,material is 45# forge steel |
9 | Transmission | By chain 1.2 inch 20A double chain with longer shafts |
10 | Material of chain | 45# forged steel with frequency quenching, 12A |
11 | Material of cutting | Cr12Mov with quench HRC58-62° |
12 | Main motor power | 7.5kw |
13 | Motor power of hydraulic station | 5.5kw |
14 | Hydraulic station pressure | 12Mpa |
15 | Machihne Weight | 10 Ton |
15 | Tolerance | 6m+-1.5mm |
16 | Frame | H Beam |
| Main list | | 1 set |
| 1 set | |
| 1 set | |
| 1 set | |
| 1 unit | |
| 1 unit | |
| 2 units | |
| 1 unit |
Working Flow of Roll Forming Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting
Machine Description

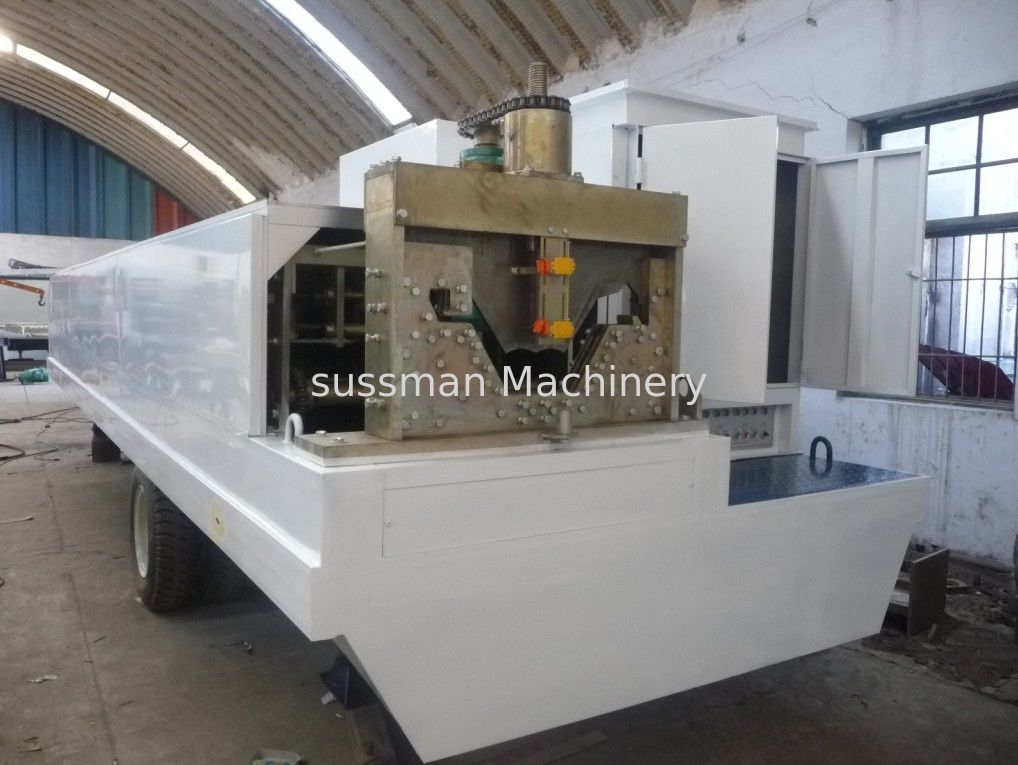

The no girder arch roof roll forming machine is designed and built to produce large span steel sheet for
roofing panel. It is comprised of mechnical expansion decoiler, roll forming machine unit, hydraulic mould
cutting device, curving panel machine unit, PLC control system, hydraulic system, run-out tables for
straight and curve panels and all other accessories. Customer can choose mobile truck as foundation for
flexible use.
Advantage of machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Profiles
Forming Machine Pictures
