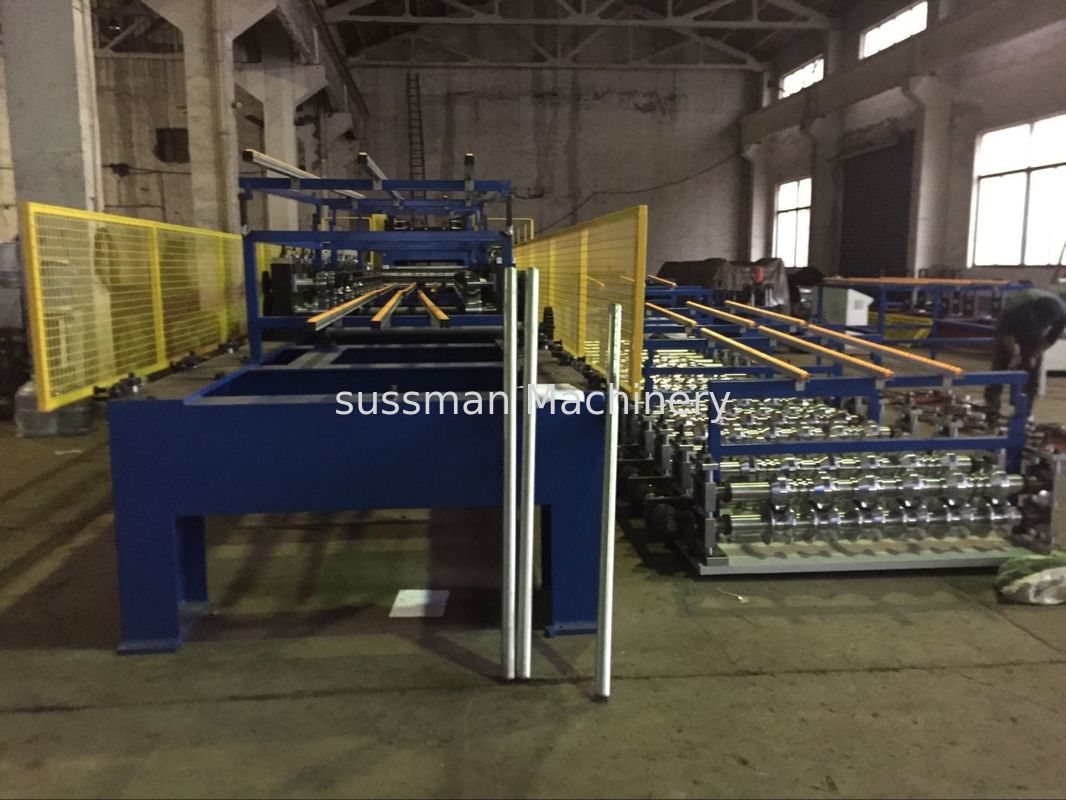

High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width

China High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width supplier
High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width supplier High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width supplier High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width supplier

Large Image :  High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width

Product Details:

Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: CE
Model Number: SM-PUC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 80-100 days after deposit
Payment Terms: T/T L/C, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per months
Contact Now
Detailed Product Description
Raw Material: Color Steel Coil Roller Forming Speed: 3-8m/min
Main Motor Power: 35KW Thickness Of Material: 0.4-0.8mm
Panel Width: 600-1250mm Decoiler: 5 Ton Manual

High Speed 3-8m/min 950mm Width Discontinuous PU Sandwich Panel Production Line with Ce Certification





Discontinuous PU Sandwich Panel



Discontinuous PU Sandwich Panel Production Line is a good choice with

Economy investment, flexible size panel, high qualty



1.Machine is to make the sandwich panel with the color steel sheet or

galvanized sheet and the core of polyurethane discontinuously.



2.The multi-layered laminator is consisted of the press and the rail stands.

Two worktables move into the press and the other two stay on rail stands.

Initially, put the top and the bottom sheets inside of mould frames and then

seal, after that, feed the worktables into the press. When worktables inside

the press moves out orderly, the other two feed in at the same time. Upon

the finish of feeding, the press will close and slant at a angle, waiting for

injecting PU raw materials from the PU mixing head into different panels.

Meanwhile materials start foaming and curing. At this time, mould frames

on worktables moved out for taking out the finished products, then to be

ready for next production cycle.



3.The main laminator 2+2 produces PU sandwich panel with fixed length

such as 6m, 9m, 12m, adjustable width less than 1.2m, different thickness

from 50mm to 250mm by the closed molding frame





Item Unit Parameters
Panel Material Types   Pre-painted steel; Aluminum; Platinum
Hardness MPa ≤350
Thickness mm 0.4-0.8
Coil width mm ≤1250
Coil ID mm 500.6
Coil Weight T 5.8.10
Foam Material   EPS Polyurethane
Length of Sandwich Panel: mm ≤1050
Width of Sandwich Panel: mm ≤200
Speed of Output m/min 3-8m/min
Pressure of Foam Injection bar 150-200





Advantage for PU Ceiling





1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable







Profiles of PU Ceiling


High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel WidthHigh Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width





High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel WidthHigh Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width





Company Introduction



Sussman Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

High Speed Discontinuous PU Sandwich Panel Production Line 950mm Panel Width









Our service


1. Installation and training:
1). If buyers visit our factory and check the machine, we will show you sample running machine
plant, talk all the details face to face, also can design the machine line according your detial request.

2). Our engineers are available for over -seas, technical supported until the workers know how to
operate the eps sandwich wall panel production line.
2. After Service
1). One year guarantee for whole machine.
2). 24 hours technical support by email or calling.
3). If there is any problem found of the machine, we will repair it for free in one year.
