Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler

China Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler supplier
Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler supplier Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler supplier Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler supplier

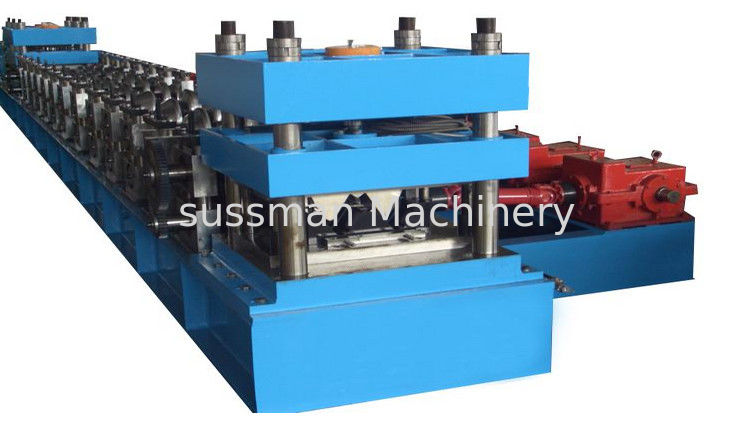

Large Image :  Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler

Product Details:

Place of Origin: China (mainland)
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SS-GR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: 65 working days after deposit
Payment Terms: T/T L/C
Supply Ability: 11 sets per month
Contact Now
Detailed Product Description
Material: Galvanized Cold Steel Dirve System: Gearbox Dirving
Machine Weight: About 6 T Main Motor Power: 55 Kw
Roller Diameter: 80mm Material Of Blad: Cr12

Guard railway roll forming machine



Guardrail Roll Technical Parameter



1. Material Thickness: 1mm--4mm (depend on requirement )



2. Hydraulic power: 11Kw



3. Transmission way: gearbox drving



4. Material of blad: Cr12, quenching treatment



5. Capacity of Decoiler: 3 Ton hydraulic decoiler



6. Forming Speed: 10-20m/min (not including punching time)



7. Roller Groups: about 15 stations main roller



8. Roller Material: GCr15, quenching treatment



9. Roller Diameter: 180mm



10. Principal Axis: 45# high grade steel with quenching treatment



11. Main Motor Power: 55 Kw




Guardrail Roll Main Components

















Price (FOB shanghai)

3 ton hydraulic Un-coiler 1 set
Main roll forming machine 1 set
Cutting 1set
Punching 2 sets
Control box 1 unit
Hydraulic station 1 unit
Out table

2 units






Working Flow of Guardrail Roll



Decoiler ---- Feeding --- Levelling---Punching--- Roll Forming ---- Cutting ---- Run out table


Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler



Advantage of roll forming machine





1. Reasonable Price


2. High Quality


3. 12 Months Warranty


4. More Than 10 Years Experience


5. Durable


6. Reliable


During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.






Photo Gallery

Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler



Loading picture



Three / Two Waves Guard Railway Roll Forming Equipment 3 Ton Hydraulic Decoiler





FAQ

1). Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
Besides, the width is adjustable.

2). Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

3). How to visit your company?
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Wuxi Station (30 minutes), then we can pick up you.

4). What can you do if the machine broken?
Our machines' warranty period is 12 months, if the broken parts can't repair, we will send the new parts replace the broken parts for free, but you need pay the express cost If after warranty period, we can through negotiation to solve the problems, and we supply the technical support for the whole life of the machine.

5). Can you be responsible for transport?
Yes, please tell me the destination port or address. we have rich experience in transportation.

6). You are trade company or factory?
We are factories.

7). Why your price is higher than others?
As we persist on that factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

8). How long the machine could be made?
Normally speaking, deck floor roll forming machine could be made about 60 working days. If you need machines in a hurry, we can try it short time.
