Single Chain Driving System Fire Damper Roll Forming Machine Hydraulic Cutting

China Single Chain Driving System Fire Damper Roll Forming Machine Hydraulic Cutting supplier
Single Chain Driving System Fire Damper Roll Forming Machine Hydraulic Cutting supplier Single Chain Driving System Fire Damper Roll Forming Machine Hydraulic Cutting supplier Single Chain Driving System Fire Damper Roll Forming Machine Hydraulic Cutting supplier

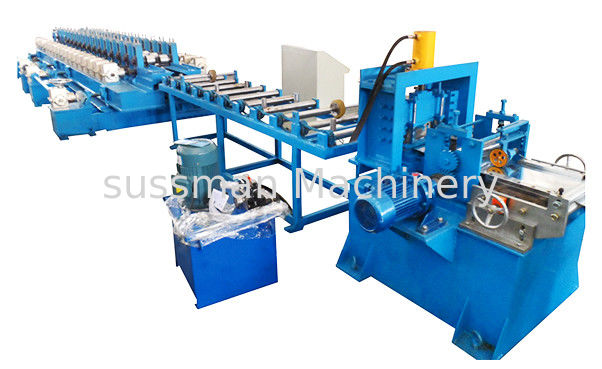

Large Image :  Single Chain Driving System Fire Damper Roll Forming Machine Hydraulic Cutting

Product Details:

Place of Origin: CHINA
Brand Name: SUSSMAN
Certification: CE
Model Number: SS-FD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: 65 working days after deposit
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Rolling Speed: About 10m/min Power Supply: 380V, 50HZ, 3 Phase
Motor Cutting Power: 7.5 KW Roller Stations: Normally 16 Stations
Control System: PLC With Touch Screen Material: Galvanized Steel Sheet

 Fire Damper Roll Forming Machine





Technical Parameter



Material of coil Material Thickness 1.0--1.5mm
Un Coiler 5 tons manual
Forming system Rolling Speed About 10m/min
Roller Stations About 16 stations
Roller Material

Gcr15 coated with chrome



Shaft diameter 65mm
Maim Motor Power 11kw
Pinching motor 2.2kw
Motor cutting Power 7.5kw
Cutting system Material Of Cutting CR12mov with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Cutting blades 3 sets
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s requirey

Control System PLC (Panasonic) as list in the note
  Weight About 8 tons
  Way Of Drive

1.2 inch chain








Fire Damper Main Components




5 ton passive de-coiler------------------------------------------------------------- 1 set

Leveller---------------------------------------------------------------------------------1 set

Punching--------------------------------------------------------------------------------4 sets

Main roll forming machine------------------------------------------------------------1 set

PLC Control box------------------------------------------------------------------------1 unit

Hydraulic station------------------------------------------------------------------------1 unit

Out table----------------------------------------------------------------------------------2 units




Working Flow of Fire Damper





De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table




Single Chain Driving System Fire Damper Roll Forming Machine Hydraulic Cutting









Profile of product

Energy-efficient smoke protect fire damper roll forming machine





Energy-efficient smoke protect fire damper roll forming machine



Loading picture



Single Chain Driving System Fire Damper Roll Forming Machine Hydraulic Cutting







After-sale Serive

- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.


- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.


- Training time: 5 days.


- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.


-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
