40mm - 80mm C Steel Purlin C Z Purlin Rolling Machine With Hydraulic Station

China 40mm - 80mm C Steel Purlin C Z Purlin Rolling Machine With Hydraulic Station supplier
40mm - 80mm C Steel Purlin C Z Purlin Rolling Machine With Hydraulic Station supplier 40mm - 80mm C Steel Purlin C Z Purlin Rolling Machine With Hydraulic Station supplier

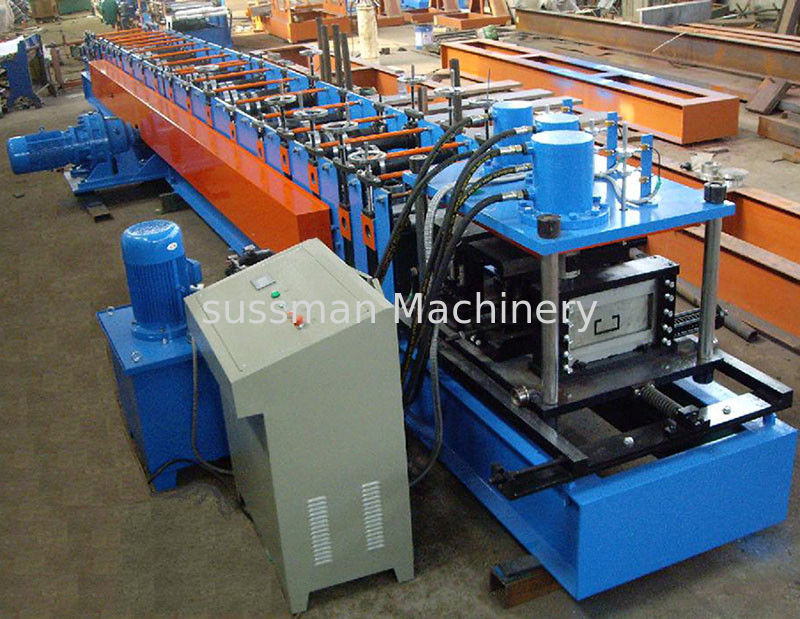

Large Image :  40mm - 80mm C Steel Purlin C Z Purlin Rolling Machine With Hydraulic Station

Product Details:

Place of Origin: China
Brand Name: Sussman
Certification: SGS.CE.ISO
Model Number: SM-CP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: film and steel
Delivery Time: 75 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material Thickness: 1.0-2.5mm Roller Stations: 18 Stations
Power Supplier: 380V, 50HZ Cutting Type: Hydraulic Cutting
Hydraulic Cutting: 5.5KW Cutter Material: Cr12 Steel
Weight: About 4 Tons Main Power: 11kw

40mm - 80mm C Steel Purlin C Z Purlin Rolling Machine With Hydraulic Station



Specification



1. European quality, work smoothly

2. Low loss, easy operate

3. High Efficency

4. Save Cost

5. Save space





 C Purlin Technical Parameter






Items

Specifications

Material of coil

Material Thickness

1.0-2.5 mm Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils

De-coiler

Weight

3 tons passive

Forming system

Rolling Speed

10-12m/min

Roller Stations

About 18 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel Diameter 75mm shaft



Maim Motor Power

11 kw

Hydraulic cutting Power

5.5 kw

Cutting

system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

380V, 50HZ, 3phase



Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand



Way Of Drive

1 inch single chain



Size of machine

Length 7300mm* Width 800mm* Height 1000mm





Main Components



S.N Equipment name Quantity
1 3T manual uncoiler 1 set
2 Levelling device 1 unit
3 Punching station (including punching mould) 1 unit
4 Main roll forming machine 1 set
5 Main drive 1 unit
6 Cutting unit 1 set
7 Hydraulic station 1 set
8

Control system

( including control cabinet)

1 set
9 Out put rack 1 set
10 Cutting mould 3 sets







Loading pictures



Main body of machine is naked and covered by plastic film(to protect of dust and corrosion).

Delivery time: 75 days after deposit





Our Service



Guarantee period: 12 months free service.



Installation and training

If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.

Without visiting,we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
