CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width

China CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width supplier
CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width supplier CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width supplier CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width supplier

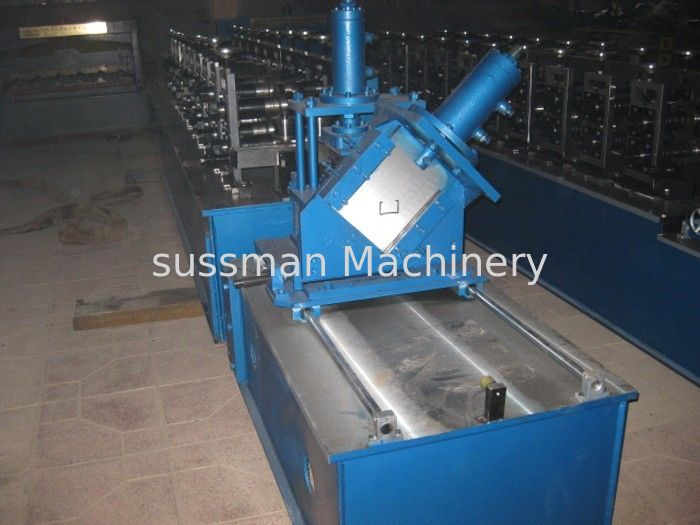

Large Image :  CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 75days after deposit
Supply Ability: 5sets/month
Contact Now
Detailed Product Description
Material Thickness: 0.75-1.2mm Main Motor Power: 7.5KW
Power Supply: 380V 50Hz 3 Phase Machine Size: 4900*1000*1500mm
Max Production Speed: 1500m/h Stations: 13 Rollers
Width: 75mm

CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width


Main Specifications


Thickness 0.75-1.2mm
Standard Producing speed 300-700m/h

Main motor
7.5kw
Power supplier 380V 50Hz 3phases according to your request
Hydraulic station 5.5kw
Hydraulic tank capacity 100L
Hydraulic pressure computer set
Hydraulic cooling Fan cooling
Frame and punching dies Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
Tolerance +- 0.5mm
Inkjet printer EC-JET
Machine size 4900*1000*1500mm
De-colier bearing 2 tonne, automatical decoiler
Weight 5000kg



VERTEX BD 2018 design software


1.The wall, floor and roof structure is produced automatically, saving design time.
2. Automatic 3D molding, insure 100% accuracy.
3. With analysis project function, the software can calculate bearing capacity.
4.Create frame work 3D map and 3D decoration view.
5.The whole building frame can be resolve to independent unit drawing.
6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7.Create the processed data including the marked work piece, docking with the equipment.
8. Software maintenance and training fee.
9. Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.


Numerical control system

With independent intellectual property rights LGS Maker production control software can insure the system be used in all kinds of working environment with its industrial grade computer.
1. 17 inch color industrial grade computer can choose keyboard, mouse or touch screen operation. Switching manual or automatic function at will.
2. With different languages to choose in operation interface, it’s easy to handle output data in design software can be copy by USB or teletransmission by Internet.
3. Read design data directly while in production, without manual intervention.
4. Real-time monitoring whole production process by graphics, which can show which work piece is working, the length, pcs and material condition etc.
5. Data is automatically saved after the machine shut down at normal case. Accidental power-off protection device is optional.
6. System is permanent free use with independent intellectual property rights.
7. Monitor and control the production process with automatic fault detection and alarm system to protection.
8. Improve efficiency to add, modify or cancel the task at any time, no matter single rob piece or whole unit. It can solve the scrap problem caused by material defect or personal error.



Equipment description
1).automatic vertical single head uncoiler : 1 set
a.Using hand tightening design, Coil ID:Ф460mm-Ф520mm, coil OD:Ф1400mm, Loading:2000kg
b.Frequency conversion automatic uncoiling
c.Power:2.2KW


2). Frame: Using steel plate welding, the overall annealing to stress treatment, to ensure long-term use without deformation; and CNC machining center processing to ensure dimensional accuracy.

3). Arch: Main arch is box structure, box is CNC machining center processing, auxiliary arch is independent structure.

4). Rolling mould: Cr12mov die steel, after vacuum hardened HRC60-62 ° to refine the hole and the end of the face, CNC lathe finishing the roller surface.

5). Main axis: Material for 40Cr tool steel, quenching and tempering heat treatment, external grinding finishing

6). Drive system: Servo motor and reducer linkage, between the wheel with precision hard tooth gear oil immersion operation, to ensure that the use of long time without wear.

7). Hydraulic system
a. Energy storage structure, energy saving and environmental protection
b. Hydraulic components: Germany Bosch Rexroth products


8). Punching mould
Die model material are used S45C tool steel, mold insert with D2 or SKD11 high-quality steel, mold parts with Japan's rice products.


9). Electrical parts
a.Original imported motion controller and PLC

b.. International first-class brand low voltage components

10). CNC inkjet printer
a.Configuration of industrial-grade high quality solvent-based electronic inkjet printer, print writing clear and solid, easy to install
b.Common solvent based inks,easy to buy, and economical to use
c.Automatically prints automatically generated by the design software, without human intervention
d.By Frame Mac LGS maker production control system can add any additional information, such as, company name,logo, websites and so on.


CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width

Our service
CNC Light Gauge Steel C Channel Roof Truss Making Machine 75mm Width


Terms

Payment Term:T/T,L/C
30% T/T in advance and 70% T/T after inspection before shipment.

Warranty
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD100/person/day for salary.
3. Need one technicians, training time: one week (contains the time of installation and debugging)
