100mm Width Cable Tray Cover Forming Machine With PLC Siemens Control System

China 100mm Width Cable Tray Cover Forming Machine With PLC Siemens Control System supplier
100mm Width Cable Tray Cover Forming Machine With PLC Siemens Control System supplier 100mm Width Cable Tray Cover Forming Machine With PLC Siemens Control System supplier 100mm Width Cable Tray Cover Forming Machine With PLC Siemens Control System supplier

Large Image :  100mm Width Cable Tray Cover Forming Machine With PLC Siemens Control System

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Sussman
Certification: CE,SGS,ISO
Model Number: SM-CT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel wire
Delivery Time: 60 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Thickness: 1.0-2.0mm Galvanized Steel Width Of The Profile: 100-200mm Adjustable
Main Power: 5.5kw Rolling Speed: 10m/min
Electric Source: 380V, 50HZ,3 Phase Roller Stations: 10 Stations
Cutting: Hydraulic Cutting Hydraulic Station: 4KW

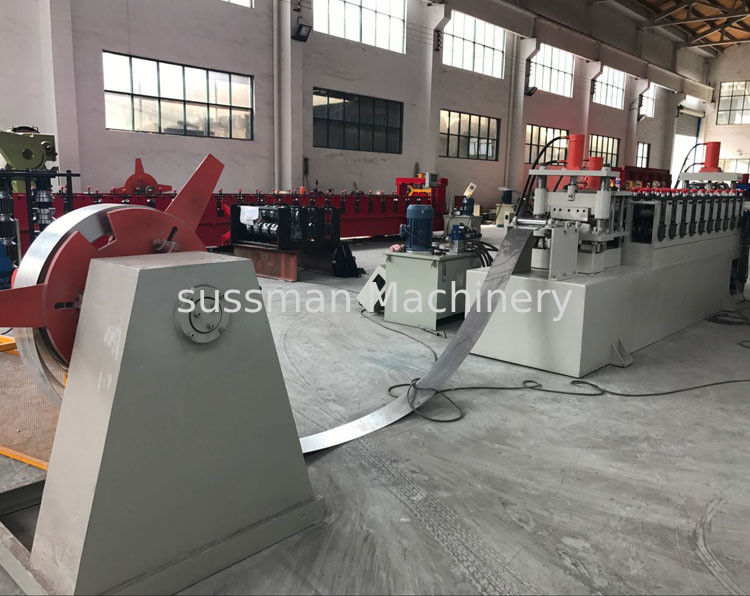

100mm Width Cable Tray Cover Forming Machine With PLC Siemens Control System





Product Description



Cable Tray Roll Forming Machine Automatic Cutting System:


Feature: Automatic cutting controlled by PLC. Ensure stability, precision and cutting speed. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.It contains one set of cutting tools, one hydraulic tank and one cutter machine.





Main Components



Manual Uncoiler
Guide& Feed& leveling unit
Roll Forming System
Hydraulic Cutting
Hydraulic Station
PLC Control System
Output table

Spare parts







Technical parameter







Items

Specifications

Material of coil

Material Width

100-200mm

Material Thickness

1.0-2.0mm

Uncoiler

3 tons manual

Forming system

Rolling Speed

10-15m/min

Roller Stations

10 stations

Roller Material

GCr15quench treatment

Shaft DIA

60mm

Main Motor Power

5.5kw

Cutting system

Material Of Cutting

Cr15 with quench treatment

Hydraulic cutting Power

4kw

Electrical control system

Electric Source

380V, 50HZ,3 phase

Control System

PLC (Panasonic)



Encoder

Omron







Our advantage


a. Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.

b. Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

c. Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
d. Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than eighty countries and regions.We have professional team, complete production system, high quality products, good service.
