Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment
  • Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment
  • Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment
  • Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment
  • Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment

Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Material: Thickness:
1.5-2.5mm
Main Motor Power:
18.5KW
Working Speed:
9-10m/min
Cutting Material:
Cr12mov
Driven System:
Chain Drive 2 Inches
Material Of Shaft:
45# Advanced Steel (Diameter: 75mm), Thermal Refining
Roller Station:
19 Stations
Punching Press:
63 Tons
High Light:

2.5mm roll forming equipment

,

18.5KW roll forming equipment

,

9m/min roll forming equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
75 days after deposit
Supply Ability
10 sets/month
Product Description



18.5KW Perforated Solar Panel Bracket Rolling Machine With Chian Transmission


1. Slotted Strut Channel Technical Parameter

1. Forming Steps: 19 stations
2. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

3. Suitable Plate Material: thickness 1.5-2.5mm, Galvanized steel or blank steel
4. Working Speed: 9-10 meters / min
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain Driven 2 inches
7. Main Power with reducer: 22KW WH Chinese Famous
8. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
9. The whole machine is controlled by industry computer-PLC.
10 PLC--Panasonic, Japan English and Chinese Language
11 Touch Screen--Panasonic Japan
12 Encoder--Omron, Japan
13 Electric parts--Schneider



2. Slotted Strut Channel Machine List

S.N

Equipment name

Quantity

1

3T hydraulic un-coiler

1 set

2

Leveling device NC 300mm

1 set

3

Servo feeding device 300mm

1 unit

4

Press machine JH21-63

1 unit

5

Main roll forming machine

1 set

6

Fly saw cutting

1 set

7

control box

1 set

8

Out tables

2 units

9

Spare parts

1 package

10

Punching die set

1 set



3. Slotted Strut Channel Working Flow



Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment 0




4. Our Advantages

Professional Technical Team


The company has professional teams which are respectively responsible for product development, mechanical assembly and precision parts processing.



Our products follow the principle of production self-inspection, storage inspection and dispatch inspection.

Our After-sales Service:

Our equipment has a warranty of one year and we only charge the repair cost outside one year. our equipment has been standardized and modularized.

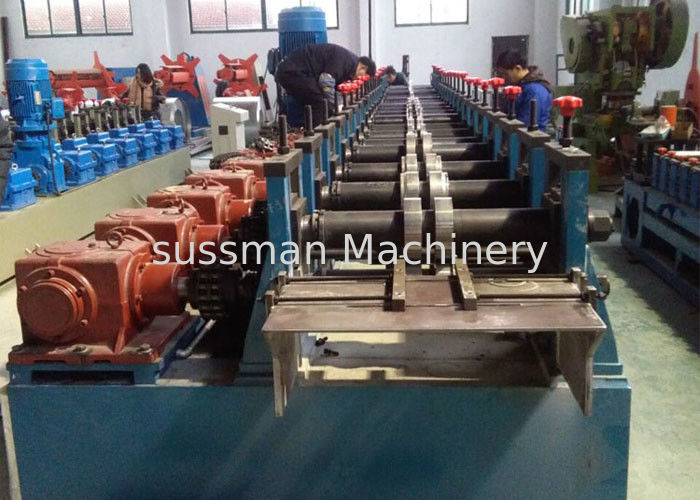

5. Machine Picture

Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment 1

Perforated Solar Panel Bracket 2.5mm Roll Forming Equipment 2






6. FAQ

Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 10 years.

Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.


Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,
 if the broken parts can't repair, we can free send the new parts replace the broken parts to you within warranty period

Q:Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine


Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
