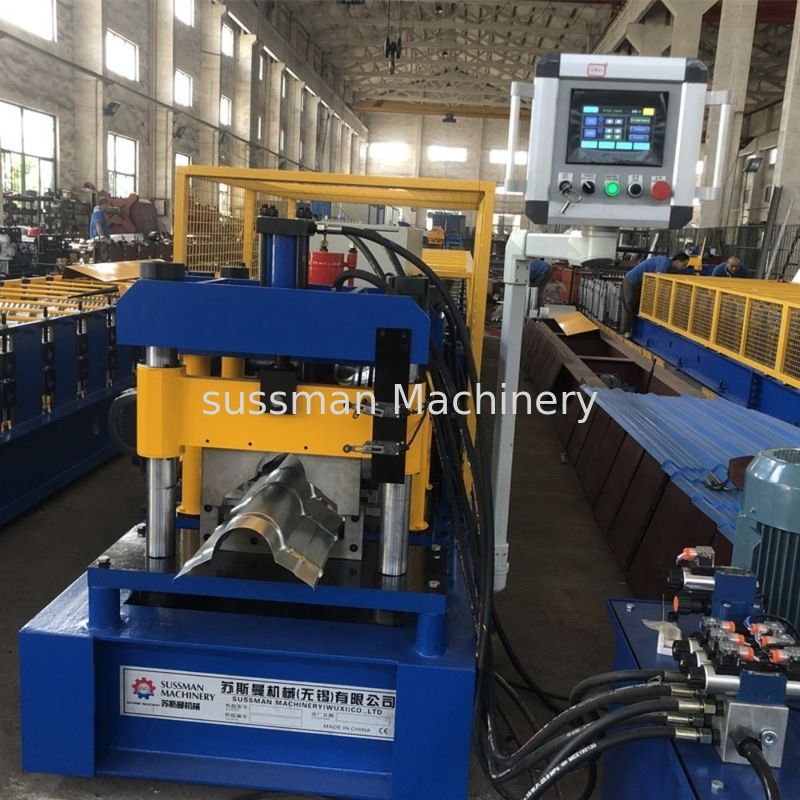

4KW Hydraulic Punching Ridge Cap Tile Roll Forming Machine Chain Transmission
Ridge capping tile is used as the apex join of two sides of the roof. The roof ridge capoing is a necessary part of any profiled clad building ,provides a clean,maintenance free, weightless , totally weatherproof finish to your roof, it is cost-effective and labor saving, it can also enhance the aesthetics of any structure. Roof ridge capping fit primarily to maintain a watertight roof. Without a ridge capping fitted, the rainwater would run down the chimney, or the higher area of roof tiles, and just disappear into the house interior where the chimney rises through the roof.
Description of the machine:
|
|
Items
|
Specifications
|
| Material of coil |
Material Thickness |
0.3—0.8mm |
| Un Coiler |
3 tons manual |
| Forming system |
Rolling Speed |
5-10m/min |
| Roller Stations |
16stations |
| Roller material |
45# steel, coated with chrome |
| Maim Motor Power |
5.5kw |
|
Hydraulic cutting Power
|
4kw |
|
Cutting
system
|
Material Of Cutting |
CR12 with quench treatment |
| Hardness |
HRC58-62 |
| Tolerance |
+-1.5mm |
| Electrical control system |
Electric Source |
380V, 50HZ,3 phase
Also can satisfy customer’s require
|
| Control System |
PLC with touch screen |
| |
Way Of Drive |
1.2 inch single chain |
|
Packing
information
|
Color of the machine |
blue |
Advantage for Ridge Cap
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working flow of the Ridge Cap:
Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting
Notes:
1. The delivery term for the above equipment is FOB SHANGHAI
2. The whole producing plant has the CE certificate approved
3. We offer a warranty period of 1year for all of our machines.
4. Our after-sales services will include factory process designing, equipment Installation coaching, test running the machines, and training of your operation personnel.
Drawings:
Application:
