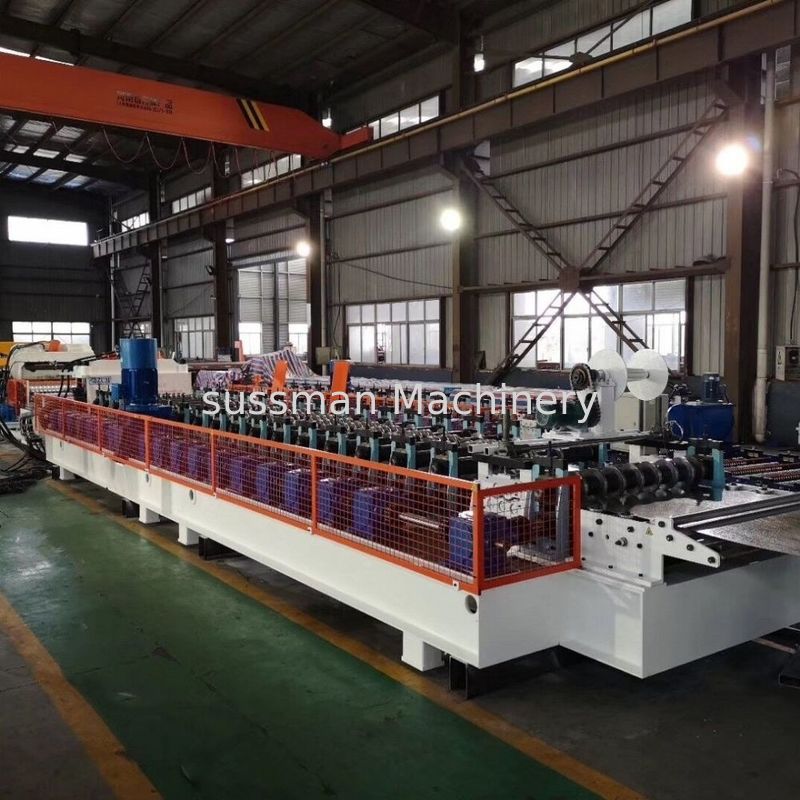

10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine

10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine
10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine
10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine

Large Image :  10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine

Product Details:
Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: CE
Model Number: SS-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 75-95 days after deposit
Payment Terms: T/T L/C
Supply Ability: 10 sets per months

10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine

Description
Name: Steel Silo Roll Forming Machine Main Motor Power: 45 KW
Thickness: 1.5-3.5mm Forming Stations: 18 Stations
Forming Speed: 10m/min Transmission: Gearbox Drive
Cutting Way: Hydraulic Cutting Feeding Width: 1250mm
High Light:

Hydraulic Punching Roll Forming Machine

,

10m/Min Silo Roll Forming Machine

,

Hydraulic Punching silo making machine

10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine



 Technique  parameter
1. Materials to form shutter door: 0.9-3.0mm galvanized coils, Feeding width: 1250mm
2. Forming steps: about 18 stations
3. Material of rollers: Gcr15 steel precision-machined, high frequency quenching HRC58-62,
4. Material of main shaft : 45# high quality steel (diameter>¢50)
5. Cutting: hydraulic cutting; quenching HRC58-62
6. Electronic control: PLC control Siemens Brand
7. Dimension of machine: 13500mmX1650mmX800mm
8. Working speed:10m/min;
9. Drive system: gear box drive
10. main motor power: 45kw
11. Punching moulds: 3 sets of punching dies at one time
12. Curving machine: Curving continuously to make the sheets straight, the min Radius 1.8m, the Radius can be adjustable.
13. Cutting: Hydraulic cutting
14. Hydraulic station power 37kw, the pressure 25-30Mpa.
15. Out table: lift auto stacker
16. Total Power 130kw


 Machine List


NumberMachine listNumber
110 tons hydraulic de-coiler with coil car1 set
2Feeding& leveling device1 set
3Hydraulic punching device1 set
4Main forming machine1 set
5Hydraulic Curving &Cutting device1 set
7PLC control system1 set
8Hydraulic station1 set





Advantage for Steel Silo

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable




Working Flow of Steel Silo

Decoiler--Feedingwithguide--Straighteningdevice--Mainrollformingmachine--Curving--Outputtable



10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 0




 Profiles drawing of product
10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 1
10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 2




Application

 10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 3

Loading Pics
10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 4 10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 5
10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 6 10m/Min 45KW Hydraulic Punching Steel Silo Roll Forming Machine 7

Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipment:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;

4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
