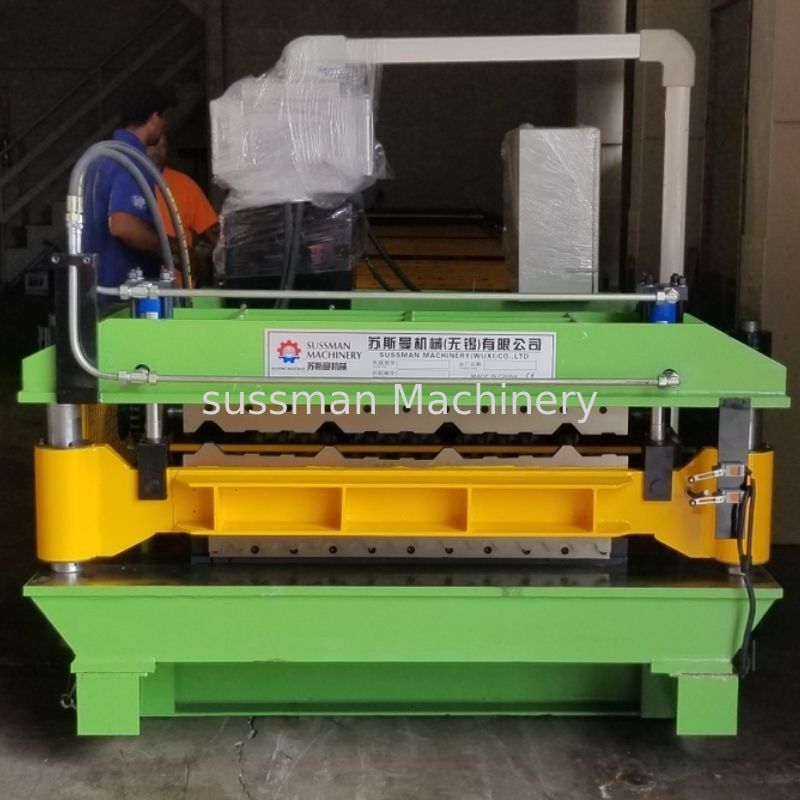

PV4 Corrugated Double Layer Roll Forming Machine PLC control
  • PV4 Corrugated Double Layer Roll Forming Machine PLC control
  • PV4 Corrugated Double Layer Roll Forming Machine PLC control
  • PV4 Corrugated Double Layer Roll Forming Machine PLC control
  • PV4 Corrugated Double Layer Roll Forming Machine PLC control
  • PV4 Corrugated Double Layer Roll Forming Machine PLC control

PV4 Corrugated Double Layer Roll Forming Machine PLC control

Place of Origin China
Brand Name Sussman
Certification ISO 9001 SGS
Model Number DL-RP-T
Product Details
Material Thickness:
0.3-0.8mm
Main Motor Power:
7.5KW
Tolerance:
+-1.5mm
Forming Speed:
8-12m/min
Roller Stands:
18 Stands Bottom Layer; 18 Stands Top Layer
Hydraulic Station Power:
3 KW
Feeding Width:
1225mm, 1225mm
Hydraulic Pressure:
12Mpa
High Light:

12Mpa Double Layer Roll Forming Machine

,

PV4 Double Layer Roll Forming Machine

,

PV4 corrugated sheet rolling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 30000 per set
Packaging Details
Normal packing
Delivery Time
50 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5 sets per month
Product Description



Chile Market PV4 and Corrugated Double Deck Layer Roof Panel Roll Forming Machine





Number Items UnitType RF-DL
1 Steel Thickness mm 0.4-0.8mm, coil width 1220
2 Forming Speed m/min 0-12m/min
3 Roller stands stand 26 stands bottom layer; 18 stands top layer
4 Roller Material mm 45# steel, coated with chrome quenching
  Shaft material and diameter mm Ф76 45# steel, coated with chrome
5 Main Motor Power Kw 7.5
6 Hydraulic cutting Power Kw 4
7 Hydraulic pressure Mpa 12
8 Power Supply   380V, 50HZ,3 phase
9 Tolerance mm 1.5
10 Material of cutting   Cr12mov HRC60-62
11 Control system   PLC with touch screen
12 Machine net weight T 10



Profile Drawings



PV4 Corrugated Double Layer Roll Forming Machine PLC control 0

PV4 Corrugated Double Layer Roll Forming Machine PLC control 1





Technological Process

Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting

PV4 Corrugated Double Layer Roll Forming Machine PLC control 2



Machine List





PV4 Corrugated Double Layer Roll Forming Machine PLC control 3

PV4 Corrugated Double Layer Roll Forming Machine PLC control 4
