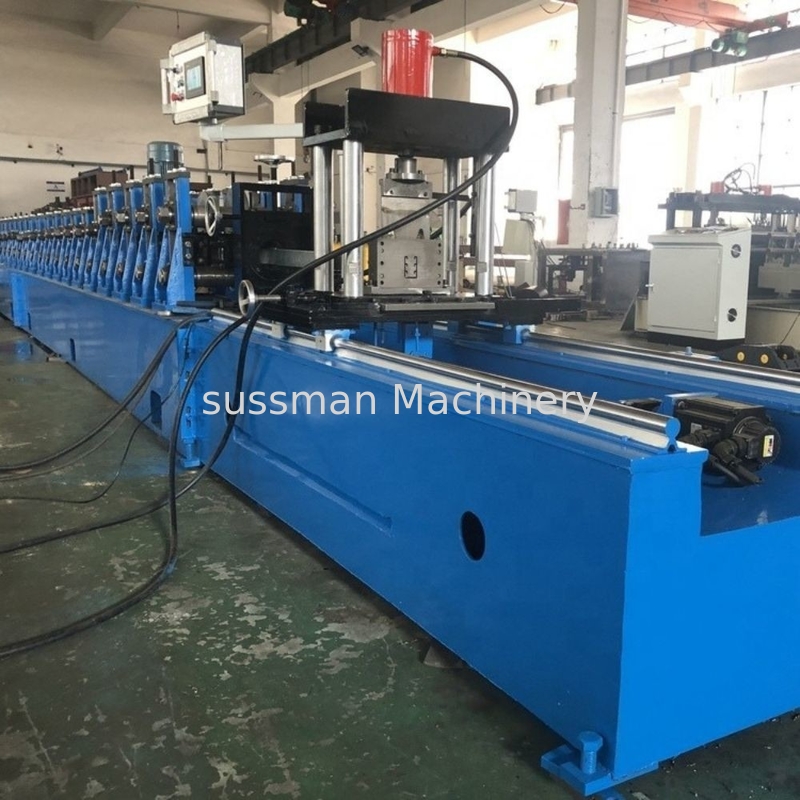

20m/Min Hydraulic Punching Strut Channel Roll Forming Machine 2.8mm

Hydraulic Punching Strut Channel Roll Forming Machine with Gear Box Drive

41*21mm 41*41mm, 41*52mm,41*72mm Solar Strut Roll Forming Machine

1. Solar Strut Channel Technical Parameter

1.1 Suitable Plate Material: thickness 1.5mm-2.8mm, Galvanized steel
1.2. Working Speed: 0-20meters /min adjustable
1.3. Forming Steps: about 22 stations
1.4. Material of Roller: Cr12mov, Quench HRC58-62 Plated Chrome
1.5. Material of Shaft: 45# Advanced Steel (Diameter: 90mm), thermal refining
1. 6. Driven system: Gearbox driven
1.7. Main Power with reducer: 18.5KW WH Chinese Famous
1.8 Power Supplier: 380V, 50 Hz, 3Phase
1.9. The whole machine is controlled by industry computer-PLC.


2. Solar Strut Channel Machine Components





3. Solar Strut Channel Application




4.Profile Drawing


5. Machine Layout

6. Our Services

Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
1. As the factory, we will recommend the right profile machine to customer, and give the professional advice.
2. Confirm the final decision during the discussion.
3. The sale person will give customer updates for each period during the production process.
4. We finish the machine within the confirmed date, and shipping the goods to customers safely and faster.
5. Provide the right documents to customers.
6. Give the tips(include photos, videos and manual) for installation and operation.
7. If the buyer can not make the installation or machine appeared the problems, if possible, we will arrange our engineer to debug within one week. The charge for technician include the visa, round tickers, food, accommodation and USD100/person/day for salary.
