0.45mm PPGL 20 Stations Double Layer Roof Forming Machine
  • 0.45mm PPGL 20 Stations Double Layer Roof Forming Machine
  • 0.45mm PPGL 20 Stations Double Layer Roof Forming Machine
  • 0.45mm PPGL 20 Stations Double Layer Roof Forming Machine
  • 0.45mm PPGL 20 Stations Double Layer Roof Forming Machine
  • 0.45mm PPGL 20 Stations Double Layer Roof Forming Machine

0.45mm PPGL 20 Stations Double Layer Roof Forming Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Steel Thickness:
0.45mm-0.8mm
Forming Speed:
30m/min
Roller Stations:
22 Rollers
Roller Material:
45# Steel
Shaft Diameter:
76mm
Main Shaft Diameter:
7.5Kw
Power Supply:
380V, 50Hz, 3Phase
Tile Type:
Colored Steel,galvanized Steel
High Light:

0.45mm double layer roof forming machine

,

PPGL double layer roof forming machine

,

20 Stations roof sheet forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

0.45mm PPGI GI PPGL Material 20 Station Double Layer Roll Forming Machine 1220mm Width





1. Technical Parameter



Suitable Material Material GI, PPGI, PPGL
Width 1220mm
Thickness 0.45mm-0.8mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers

Up layer : 20 stations

Down layer : 22 stations

Material of shafts High grade 45# forged steel
Diameter of shafts 76mm
Material of blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed

8-12 m/min

Side plate thickness 20 mm
Chain size 1 inch
Total power 7.5 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 10000mm*1500mm*1600mm
Weight(About) 8 tons
Electronic control system PLC (Delta) Touch Screen



2. Machine List



5 tons automatic de-coiler

1 set

Guiding Platform

1 set

Main roll forming machine

1 set

Cutting machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Passive Out table

2 units

Safety cover

1 unit





3. Profile Drawing



0.45mm PPGL 20 Stations Double Layer Roof Forming Machine 0

0.45mm PPGL 20 Stations Double Layer Roof Forming Machine 1





4. Main Features



Double Layer Machine can make two different profile drawings in one machine, it can save more room and of course more economy compared with two different machines.

You can choose two different kind of profile drawings as well as corrugated sheet drawing, but one time only can produce one layer profile .

There is one clutch as one side of the machine, and we just need simply to move one handle wheel to make other layer profile.

  • Variable frequency speed control
  • Multi-purpose for overlap connection
  • Auto power off

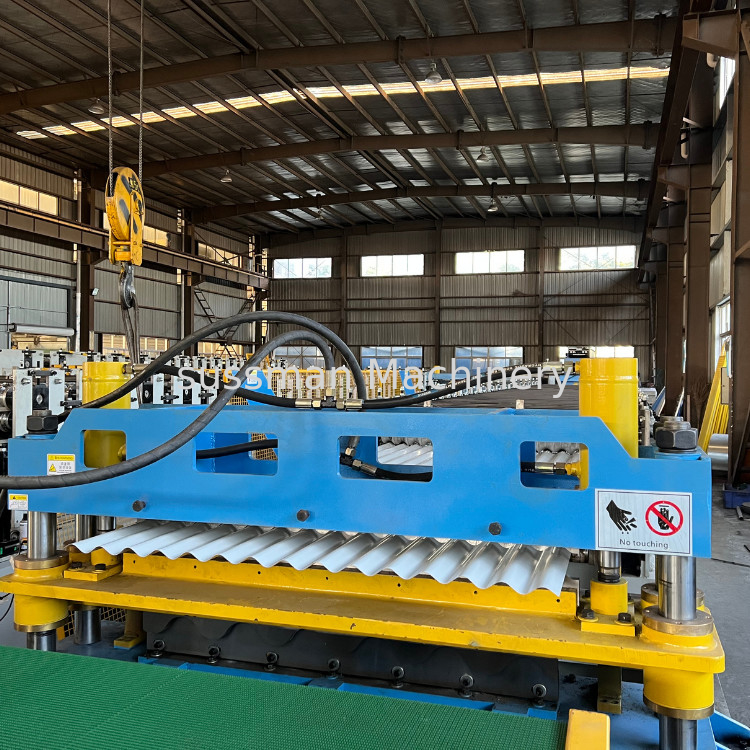

5. Machine Photo

0.45mm PPGL 20 Stations Double Layer Roof Forming Machine 2

0.45mm PPGL 20 Stations Double Layer Roof Forming Machine 3
