10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting
  • 10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting
  • 10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting
  • 10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting
  • 10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting
  • 10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting

10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting

Place of Origin China
Brand Name SUSSMAN
Certification SGS,CE ,ISO9001
Model Number SS-FD
Product Details
Name:
Floor Deck Roll Forming Machine
Material Thickness:
0.8-1.2mm
Forming Stations:
28 Stations
Dirve System:
Chain Drive
High Light:

Servo Cutting Floor Deck Forming Machine

,

10M/min Deck Floor Forming Machine

,

Deck Floor 0.8mm Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard Packing with film coated and steel wire fixed
Delivery Time
60-90 working days
Payment Terms
L/C, T/T,
Supply Ability
10 sets per month
Product Description

CE Certificate 0-30 Meters/min Deck Floor Roll Forming Machine With Servo Following Cutting



The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave. Sussman Machinery is always your best choice of metal deck roll forming machine.



Floor Deck Making Machine Technical Parameter





Item NO

Description
UnitType
RF-DF
1
Steel Thickness
mm
0.8-1.5mm
2
Forming Speed
m/min
0-20m/min
3
Roller stands
stand
28-30
4
Roller Material

Gcr15 chromed
HRC55-60
5
Shaft diameter

Ф90mm
6
Main Motor Power
kw
11*2kw
7
Hydraulic cutting Power
kw
5.5
8
Hydraulic pressure
Mpa
12
9
Power Supply

220V, 60HZ,3 phase
10
Tolerance
mm
1.5
11
Material of cutting

Cr12mov
12
Control system

PLC with touch screen
13
DRIVE system
Chain
1.6 inches



 Machine List



No

Name

quantity

1

5 ton passive de-coiler

1 set

2

Main roll forming machine

1 set

3

PLC system

1 unit

4

Hydraulic station

1 unit

5

Out tables

2 units





Working Flow of Machine



Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting








 Standard Profile Drawing of product 10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 1

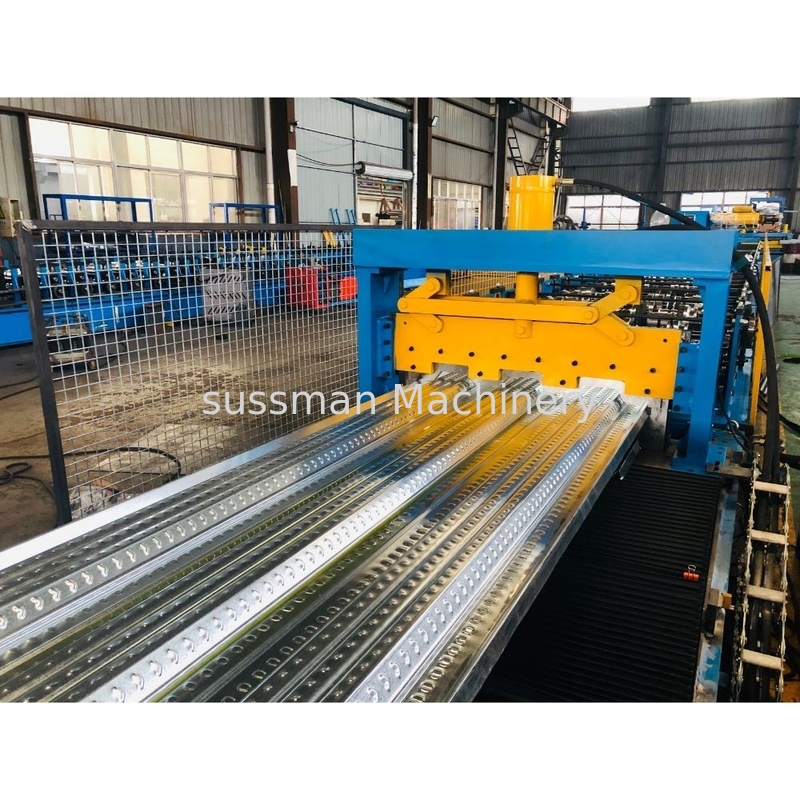

Machine Photo



10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 2

10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 3







10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 4



10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 5





Loading Pictures



10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 6

10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 7

10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 8

10Meters / Min Deck Floor Roll Forming Machine 0.8mm With Servo Following Cutting 9

Advantage



1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable





Our service



1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
