PU Sandwich Panel Production Line
>
|
|
| Place of Origin | Hebei China |
| Brand Name | Sussman |
| Certification | CE, ISO9001, SGS |
| Model Number | RW - SP |
Discontinuous Exterior Decorative Wall Panels Rock Wool Sandwich Panel Production Line
Specification
Suitable for ceramic board, calcium silicate board, metal board, etc.
Suitable for polystyrene board, extruded plastic board, polyurethane foam board, rock wool board, etc.
1. Production speed of production line: 3-4pcs/min (about 6m finished products)
2. Product drawings are shown in the drawings signed by both parties
3. Production line covers an area of about 48m×3m wide×1.8m high
4. Production line labor: 3 persons
5 production line power: about 60KW
6 production line environment working environment requirements
1) Ambient temperature: 0℃～50℃, relative humidity: ≤90% (25℃)
2) Three-phase AC power supply: 380V (±10%), 50HZ
3) Compressed air: 0.5～0.6Mpa
Process
Automatic Decoiler→feeding and heating platform→gluing part→composite material feeding part→preheating platform→laminated lamination→finished product discharging platform→automatic palletizer
Machine List
| NO. | Parts | Quanity (set) |
| 1 | Decoiler | 2 |
| 2 | Leveler | 1 |
| 3 |
Punching device |
1 |

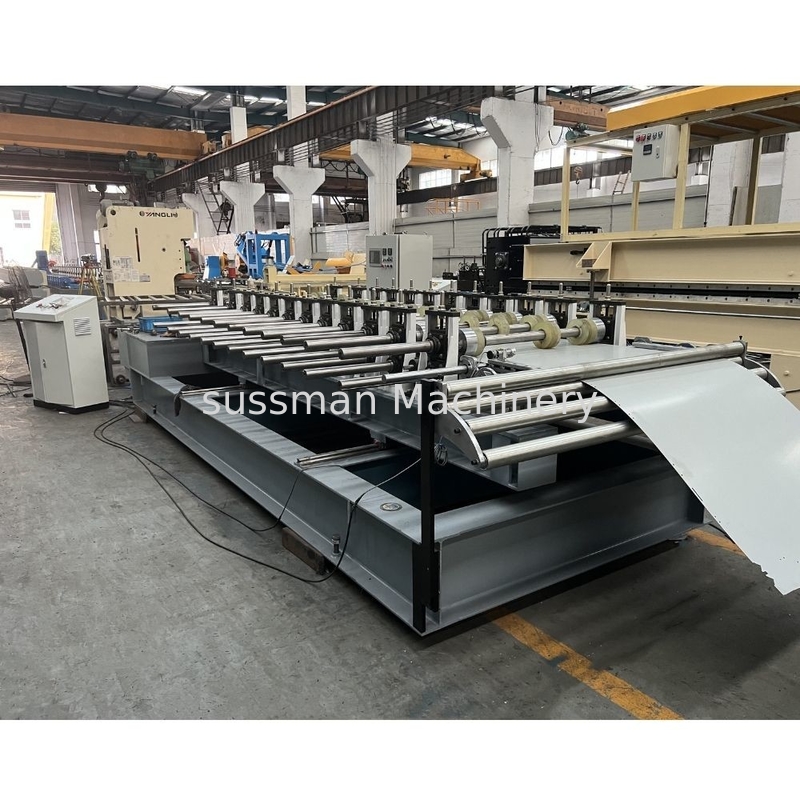

| 4 | Roll forming machine | 1 |
| 5 | Bending device | 1 |
| 6 | Out table | 1 |
| 7 | Preheating device | 1 |
| 8 | Automatic spray device (3meters) | 1 |
| 9 | Feeding device for the rockwool | 1 |
| 10 | Preheating device(2.5 meters) | 1 |
| 11 | Assembling machine 1250mm&22meters | 1 |
| 12 | Output table | 1 |
| 13 | Control box | 1 |
| 14 | Auto stacker | 1 |
Main Technical Parameters
1. Rolling material material: material for color coated coil, steel plate, aluminum plate
2. Rolled material thickness: 0.5-1.2mm
3. Rolled material width: 350-1250mm
4. Inside diameter of rolled material: φ500-620mm
5. Production line production speed: 3-4pcs/min (about 6m finished products)
6. product drawings see both sides signed drawings
7. precision and technical requirements of the manufactured parts: length ±1.0mm, port distance ±1.0mm, straightness 0.5mm/m, width tolerance ±1mm, punching notch position degree error: ≤0.3mm; symmetry ±1.5mm; basic square plate and superimposed fit: 99% for plane fit, 99% for bevel fit. Punch shall not have burr, should be flat punching smooth. (Other technical requirements not specified are subject to the requirements of the drawings confirmed by both parties under seal)
8. Production line covers an area of approximately 35m x 3m wide x 1.8m high
9. Production line labor: 2 people
10. production line power: about 22KW
11. production line environment working environment requirements
1) Ambient temperature: 0℃～50℃, relative humidity: ≤90% (25℃)
2) Three-phase AC power supply: 380V (±10%), 50HZ
3) Compressed air: 0.5～0.6Mpa
12. appearance quality of square plate: no obvious zinc bloom off the surface, loss of surface galvanized layer ≤ 10g/m2, no burr in punching notch.
13. Appearance requirements after punching: smooth and burr-free inner wall and perimeter of the hole.
