0.6Mm Double Roof Wall Panel Roll Forming Machine 36 Inches Coverage AG And R Panel

0.36 Mm-0.6 Mm 1220mm 36 Inches Coverage Width AG And R Panel Roll Forming Machine, Double Roof/Wall Panel Machine


1. Technical Parameter




2. Machine List




3. Profile Drawing

This double roof/wall panel machine that can form AG and R panels.
Minimum Coil width for AG panel is 1,038.22mm and R panel minimum is 1,079.5mm finished measurement for both panels is 914.5.
Thickness range 0.360mm-0.666mm.




4. Main Features

1.This double roll forming machine can produce two different profiles with one machine, sharing same machine base frame, un-coiler, PLC control system, which can much save of your cost.

2.More reasonable forming process design; More roller steps with competitive price.

3.The whole line consists of un-coiler, double pre-cutting system, feeding system, roll forming machine with protect guarding cover, post-cut device, PLC control system, and so on.

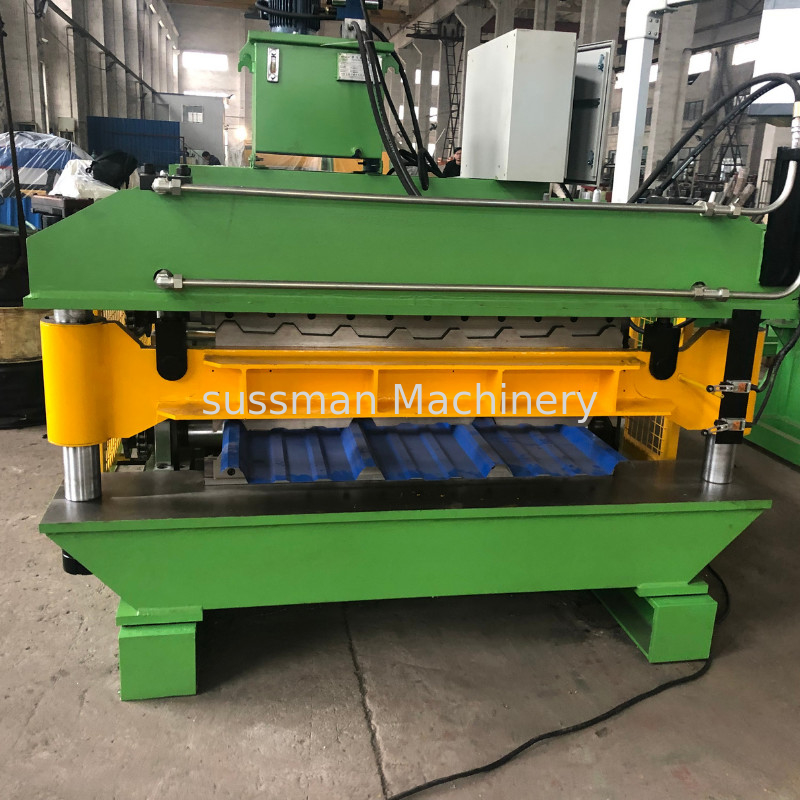

5. Machine Photo
