Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min
  • Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min
  • Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min
  • Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min
  • Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min
  • Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min
Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min

Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min

Place of Origin Wuxi, China
Brand Name SUSSMAN
Certification CE, SGS, ISO
Model Number SM-HRP
Product Details
Name:
High Speed Corrugated Double Layer Metal Roof Sheet Roll Forming Machine
Material Thickness:
0.3-0.8mm Galvanized Steel
Roller Station:
About 20 Stations
Working Speed:
30m/min
High Light:

Corrugated Metal Roof Roll Forming Machine

,

30M/Min Metal Roof Roll Forming Machine

,

0.3mm Corrugated Roof Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negociate
Packaging Details
steel+film
Delivery Time
About 75 days
Payment Terms
L/C, T/T
Supply Ability
30 sets/month
Product Description

High Speed 30 Meters Per Minute Double Layer Corrugated Metal Roof Panel Roll Forming Machine



The normal machinable thickness range of our roof panel roll forming machine is 0.2mm-0.8mm, the standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave.

Different countries has different its own commonly used profiles and name. Here are some machines more ordered by our customers:
America Latina:
①TO-725 roll forming machine
②TO-30 roll forming machine
③TO-100 roll forming machine
④TR-72 roll forming machine
⑤TR-101 roll forming machine
⑥T-101 roll forming machine (Argentine)
Indonesia:
①KR3-760 roll forming machine
②KR3-800 roll forming machine
③KR5-750S roll forming machine
④KR9-680 roll forming machine
⑤KR10-760 roll forming machine
⑥KR12-920 roll forming machine
Russia:
①C8 roll forming machine
②C21 roll forming machine
③C18 roll forming machine
UK: Box profile roll forming machine
Dubai: DSS35/200 roll forming machine
South Africa: IBR 686 roll forming machine

Item NO

Description
Unit

RF-DF
1
Steel Thickness
mm
0.5-1mm PPGI and Aluminium
2
Feeding width
mm
1250mm
3
Forming Speed
m/min
0-30m/min
4
Roller stands
stands
20/20 stations
5
Roller Material

Gcr15 58-62 HRC Chrome
6
Shaft diameter

Ф75
7
Main Motor Power
kw
7.5*2kw
8
Hydraulic cutting Power
kw
7.5kw
9
Hydraulic pressure
Mpa
12
10
Power Supply

380V, 60HZ,3 phase
11
Tolerance
mm
+/-1.5
12
Material of cutting

Cr12mov
13
Control system

PLC with touch screen
14
DRIVE system

Chain driven
Machine List:
No
Name
Quantity
1
Feeder
1 set
2
Multiple film applicator
1 set
3
Hydraulic Lubrication system
1 set
5
Inspection area w scrap box
1 piece
6
Main roll forming machine
1 set
7
Control box Siemens PLC
1 unit
8
Hydraulic station
1 unit
9
Servo following Hydraulic cutting device
1 unit
10
12 meters auto stacker
1 unit
11
5T Hydraulic decoiler
1 unit
12
3 meters belts transportation table
1 unit

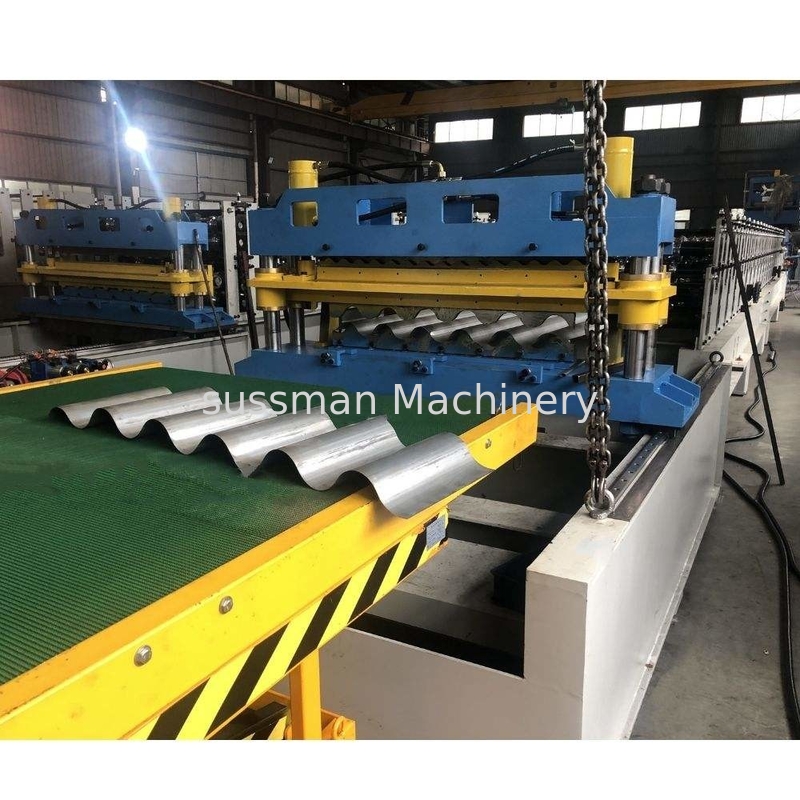

Machine Display

Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min 0

Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min 1

Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min 2

Application

Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min 3

Corrugated Metal Double Layer Roof Panel Roll Forming Machine High Speed 30M / Min 4
