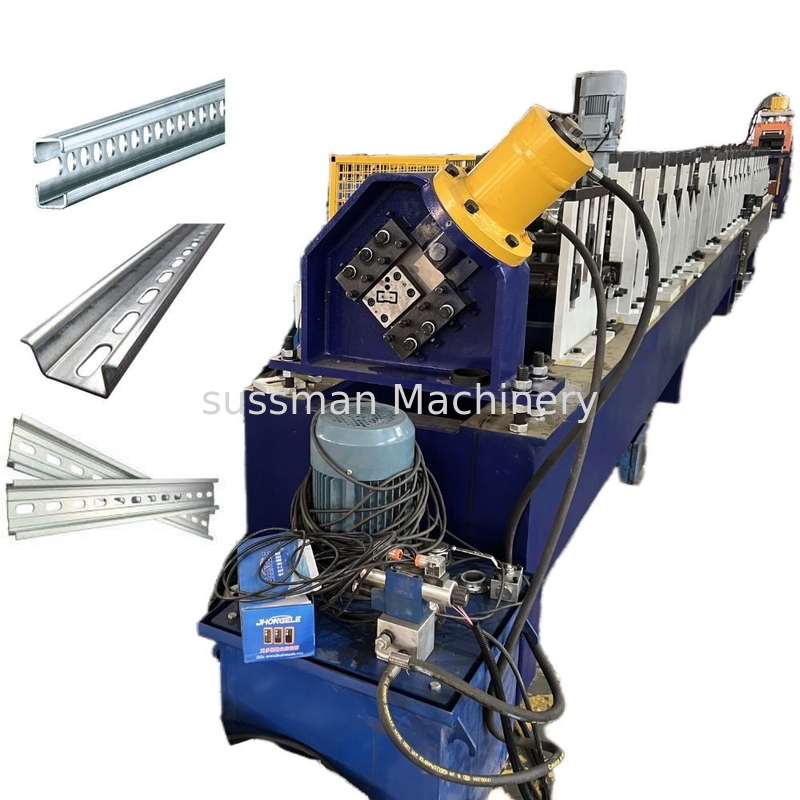

Rittal C Profile Hydraulic Punching Appliance Bracket Din Rail Roll Forming Machine
Din rail roll forming machine is to produce DIN rail for electrical cabinet, which is widely used for mounting circuit breakers and industrial control equipment inside equipment racks. Machinable materials usually are Zinc-plated steel, Aluminum, Stainless steel etc with sheet thickness 1 - 1.5mm.
Normally Din rail roll forming machine produce one size, but in our Argentine case we offer a double row roll forming machine, it could be more economic and competitive when you need produce two or more size, also we could make triple-row if you have one more size. Line working speed could reach 30m/min.
Our machine could produce DIN rails meet different standard and series in different countries:
⚫ IEC / EN 60715 - 35×7.5
⚫ IEC / EN 60715 - 35×15
⚫ EN 50022 in Europe
⚫ BS 5585 or BS 5584 in British
⚫ DIN 46277 in German
⚫ AS 2756.1997 in Australia
⚫ USA series: TS35, TS15
⚫ Argentina series: NS35
⚫ C section series: C20, C30, C40, C50
⚫ G section series: EN 50035 G32
| Item | Specifications |
|
Machinable Material : 1-1.5mm |
A) Zinc-plated steel |
| B) Aluminum | |
| C) Stainless steel | |
| Yield strength : | 250 - 550 Mpa |
| Tensil stress : | G250 Mpa-G550 Mpa |
| Decoiler : | Manual decoiler |
| Punching system : | Hydraulic punching station |
| Forming station : | 10 stands |
| Main machine motor brand : | Shanghai Dedong (Sino-Germany Brand) |
| Driving system : | Chain drive |
| Machine structure: | Wall panel station |
| Forming speed: | 10-20 (M/MIN) |
| Rollers’ material : | Steel #45 |
| Cutting system : | Post-cutting |
| Frequency changer brand : | Yaskawa |
| PLC brand : | Panasonic |
| Power supply : | 380V 50Hz 3ph |
| Machine color : | Industrial blue |
Profile Drawing:
Sample Picture:
