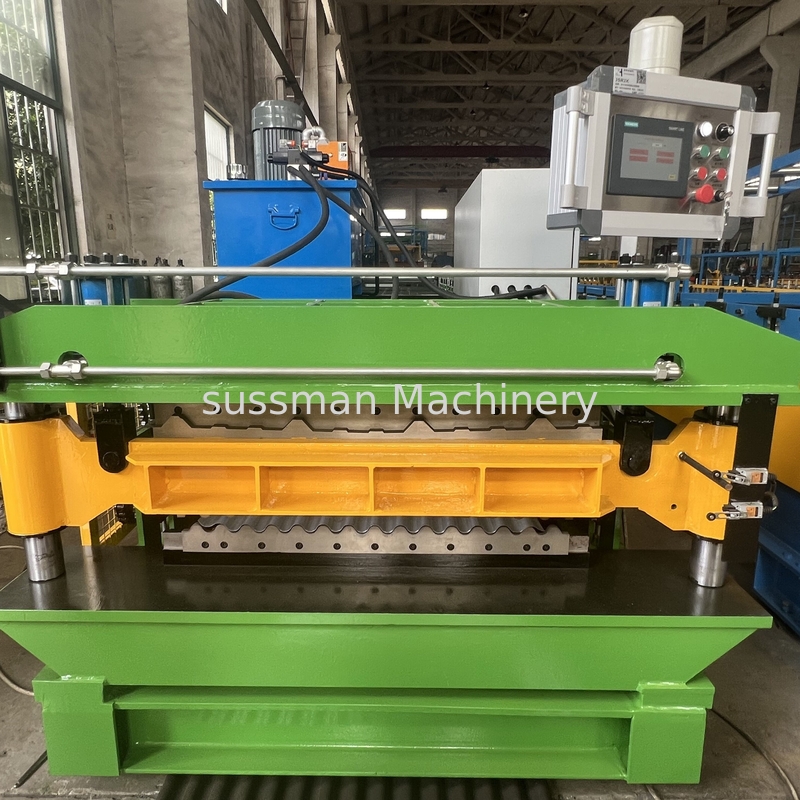

America Market G550 Steel AG Panel And Corrugated Panel Double Layer Roll Forming Machine, Two Layers Roofing Machine

Place of Origin	China
Brand Name	Sussman
Certification	ISO 9001 SGS
Model Number	DL-RP-T

Product Details

Material Thickness:

0.3-0.8mm

Main Motor Power:

7.5KW

Forming Speed:

8-12m/min

Roller Stands:

22 Stands Bottom Layer; 20stands Top Layer

Hydraulic Station Power:

4 KW

Feeding Width:

1250MM

Highlight:

double layer roll forming machine plc

touchscreen double layer roll forming machine

ag panel double layer forming machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 30000 per set

Packaging Details

Normal packing

Delivery Time

50 days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5 sets per month

Product Description

G550 Steel Ag Panel And Corrugated Double Layer Roll Forming Machine Two Layer Roof Machine

Number	Items	UnitType	RF-DL
1	Steel Thickness	mm	0.4-0.8mm, coil width 1220
2	Forming Speed	m/min	0-12m/min
3	Roller stands	stand	26 stands bottom layer; 18 stands top layer
4	Roller Material	mm	45# steel, coated with chrome quenching
	Shaft material and diameter	mm	Ф76 45# steel, coated with chrome
5	Main Motor Power	Kw	7.5
6	Hydraulic cutting Power	Kw	4
7	Hydraulic pressure	Mpa	12
8	Power Supply		380V, 50HZ,3 phase
9	Tolerance	mm	1.5
10	Material of cutting		Cr12mov HRC60-62
11	Control system		PLC with touch screen
12	Machine net weight	T	10

Profile Drawings

America Market G550 Steel AG Panel And Corrugated Panel Double Layer Roll Forming Machine, Two Layers Roofing Machine 0

America Market G550 Steel AG Panel And Corrugated Panel Double Layer Roll Forming Machine, Two Layers Roofing Machine 1

Technological Process

Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting

America Market G550 Steel AG Panel And Corrugated Panel Double Layer Roll Forming Machine, Two Layers Roofing Machine 2

Machine List

America Market G550 Steel AG Panel And Corrugated Panel Double Layer Roll Forming Machine, Two Layers Roofing Machine 3

America Market G550 Steel AG Panel And Corrugated Panel Double Layer Roll Forming Machine, Two Layers Roofing Machine 4
