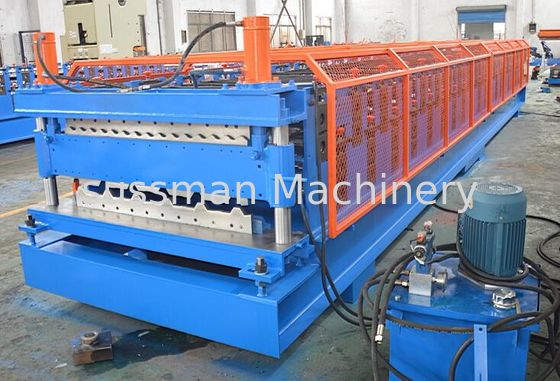

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm
Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm
Basic Information
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Steel Thickness: 0.3-0.8mm Forming Speed: 8-12m/min
Roller Stations: 20 Stations Roller Material: 45# Steel
Shaft Diameter: 76mm Main Shaft Diameter: 7.5Kw
Power Supply: 380V, 50Hz, 3Phase Hydraulic Pressure: 12Mpa
High Light:

Slip Roll Forming Machine

,

Metal Roofing Roll Forming Machine



Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm







1. Technical Parameter



Number

Items

UnitType

RF-DL

1

Steel Thickness

mm

0.3-0.8

2

Forming Speed

m/min

8-12

3

Roller stands

stand

20 stands bottom layer; 20 stands top layer

4

Roller Material

mm

45# steel, coated with chrome



Shaft material and diameter

        mm

Ф76 45# steel, coated with chrome

5

Main Motor Power

Kw

7.5

6

Hydraulic cutting Power

Kw

4

7

Hydraulic pressure

Mpa

12

8

Power Supply



380V, 50HZ,3 phase

9

Tolerance

mm

1.5

10

Material of cutting



Cr12 HRC60-62





2. Machine List

5 ton passive de-coiler

1 set

Guiding Platform

1 set

Main roll forming machine

1 set

Cutting machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Passive Out table

2 units

Safety cover

1 unit







3. Profile Drawing

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm 0

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm 1





4. Main Features



The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets,

or 1 wall & roof sheet and. Customer can choose the type.

  • Variable frequency speed control
  • Multi-purpose for overlap connection
  • Auto power off





5. Machine Photo

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm 2

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm 3



6. Company Introduction



Sussman Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm 4
