Galvanized Steel Roof Floor Deck Roll Forming Machine

Place of Origin	China
Brand Name	SUHANG
Certification	SGS.ISO.CE
Model Number	SH-RD

Product Details

Name:

Galvanized Steel Floor Deck Roll Forming Machine

Material:

0.7-1.5mm Galvanized Steel Sheet

Material Thickness:

0.7-1.5mm

Forming Stations:

28 Stations

Roller Material:

45# Steel With Quenching 60mm Shaft

Dirve System:

1 Inc Single Chain Drive

Power Supply:

380V, 50Hz, 3Phase

Forming Speed:

Up To 12m/min

Machine Weight:

About 8 Tons

Machine Dimension:

8mx0.88mx1m

Highlight:

steel forming machines

corrugated roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Shipped in 75 working days after payment

Delivery Time

75 working days after deposit

Payment Terms

L/C, T/T

Supply Ability

USD 40000-60000/ set

Product Description

Galvanized Steel Roof Deck Metal Panel Roll Forming Machine High Speed Production Line

Technical Parameter

Item NO	Description	UnitType	RF-DF
1	Steel Thickness	mm	0.7-1.5mm
2	Forming Speed	m/min	0-12
3	Roller stands	stand	28
4	Roller Material		high-grade 45# steel
5	Shaft diameter		90
6	Main Motor Power	Kw	18.5kw
7	Hydraulic cutting Power	Kw	7.5
8	Hydraulic pressure	Mpa	12
9	Power Supply		380V, 50HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12
12	Control system		PLC with touch screen

Main Components

No	Name	quantity
1	5 ton passive de-coiler	1 set
2	Main roll forming machine	1 set
3	Control box	1 unit
4	Hydraulic station	1 unit
5	Out tables	2 units

Working Flow of Roll Forming Machine

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

Galvanized Steel Roof Floor Deck Roll Forming Machine 0

Profile of product

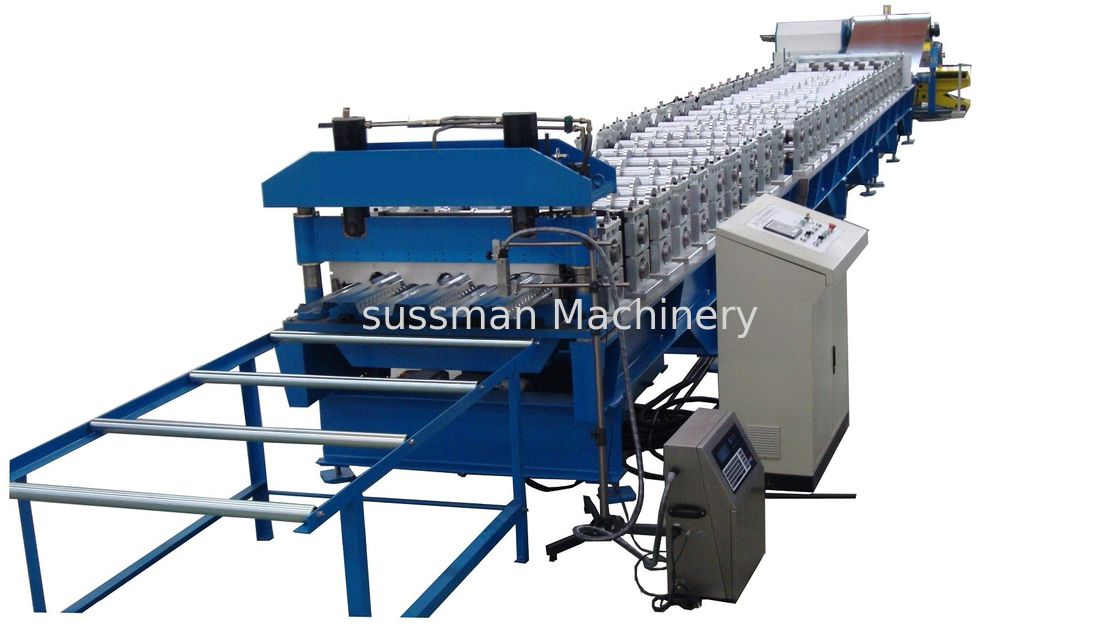

Machine Photo

Galvanized Steel Roof Floor Deck Roll Forming Machine 3

Galvanized Steel Roof Floor Deck Roll Forming Machine 4

Galvanized Steel Roof Floor Deck Roll Forming Machine 5

Galvanized Steel Roof Floor Deck Roll Forming Machine 6

Customer Visiting
Galvanized Steel Roof Floor Deck Roll Forming Machine 7
Our Exhibition

Loading pictures
